Separated end post joint
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 27, 1988
Grant Date -
N/A
app pub date -
Mar 30, 1987
filing date -
Mar 30, 1987
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

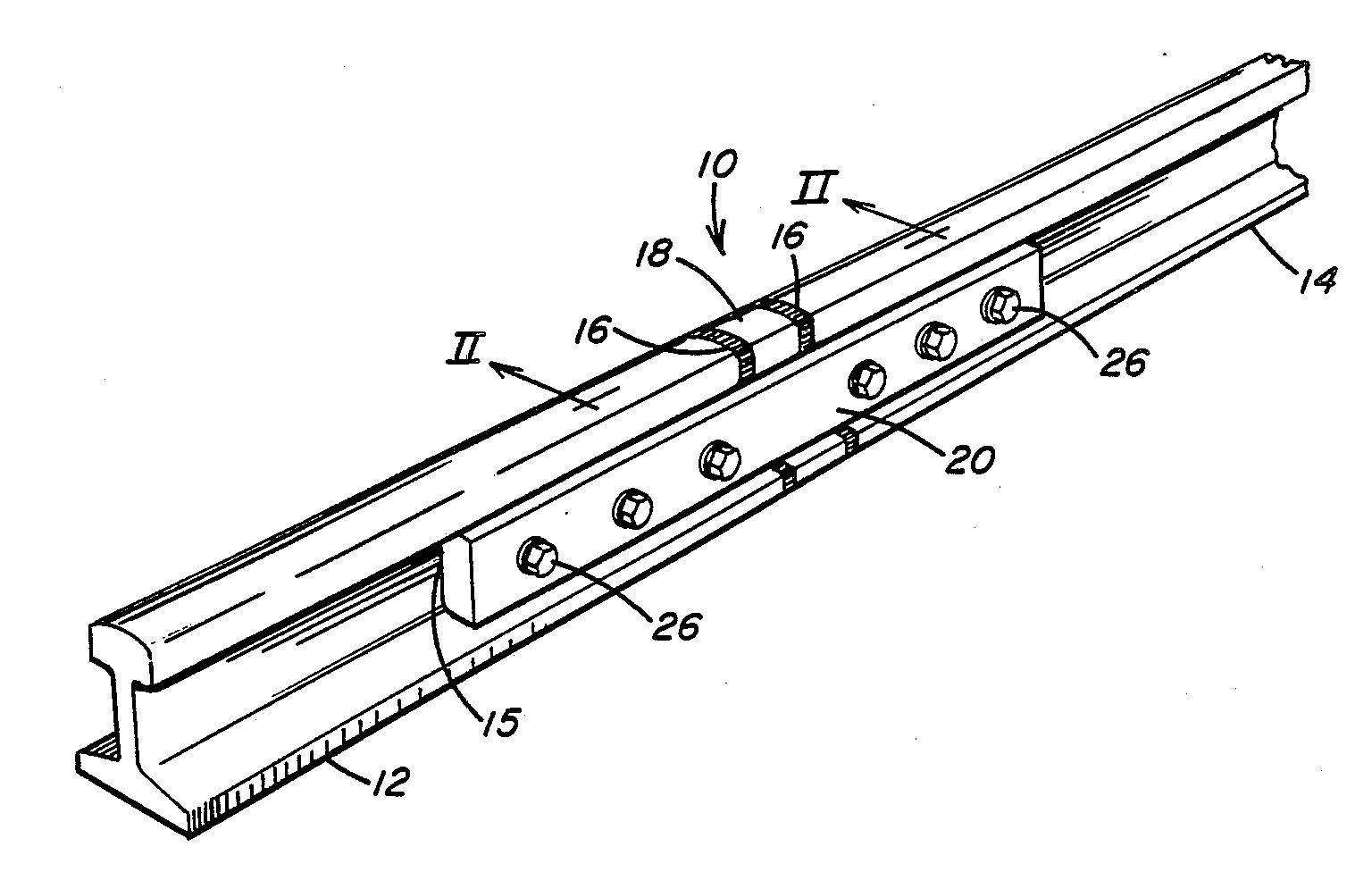

An apparatus for electrically insulating a pair of adjacent rail sections that form separate electrical signal circuits includes a pair of electrically insulating end posts positioned in a space provided between the adjacent rail sections. A metallic separator is disposed between the pair of electrically insulating end posts. Both the electrically insulating end posts and the metallic separator have a cross sectional configuration substantially the same as the cross sectional configuration of the adjacent rail sections. The adjacent rail sections are mechanically connected by a pair of connecting bars that are electrically insulated from and adhesively bonded to the adjacent rail sections. In another embodiment guard rail sections are insulated from each other by a pair of electrically insulating end posts positioned in a space provided between the individual guard rail sections. A metallic separator is disposed between the pair of electrically insulating end posts positioned in the space provided between the individual guard rail sections. Metallic spacers separate the adjacent rail sections from the adjacent guard rail sections. The adjacent rail sections and the adjacent guard rail sections are mechanically connected by a pair of connecting bars that are each electrically insulated from and adhesively bonded to the adjacent rails sections and adjacent guard rail sections.
First Claim
Other Claims data not available
