Pickup truck bed liner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 1988
Grant Date -
N/A
app pub date -
Apr 21, 1987
filing date -
Apr 21, 1987
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

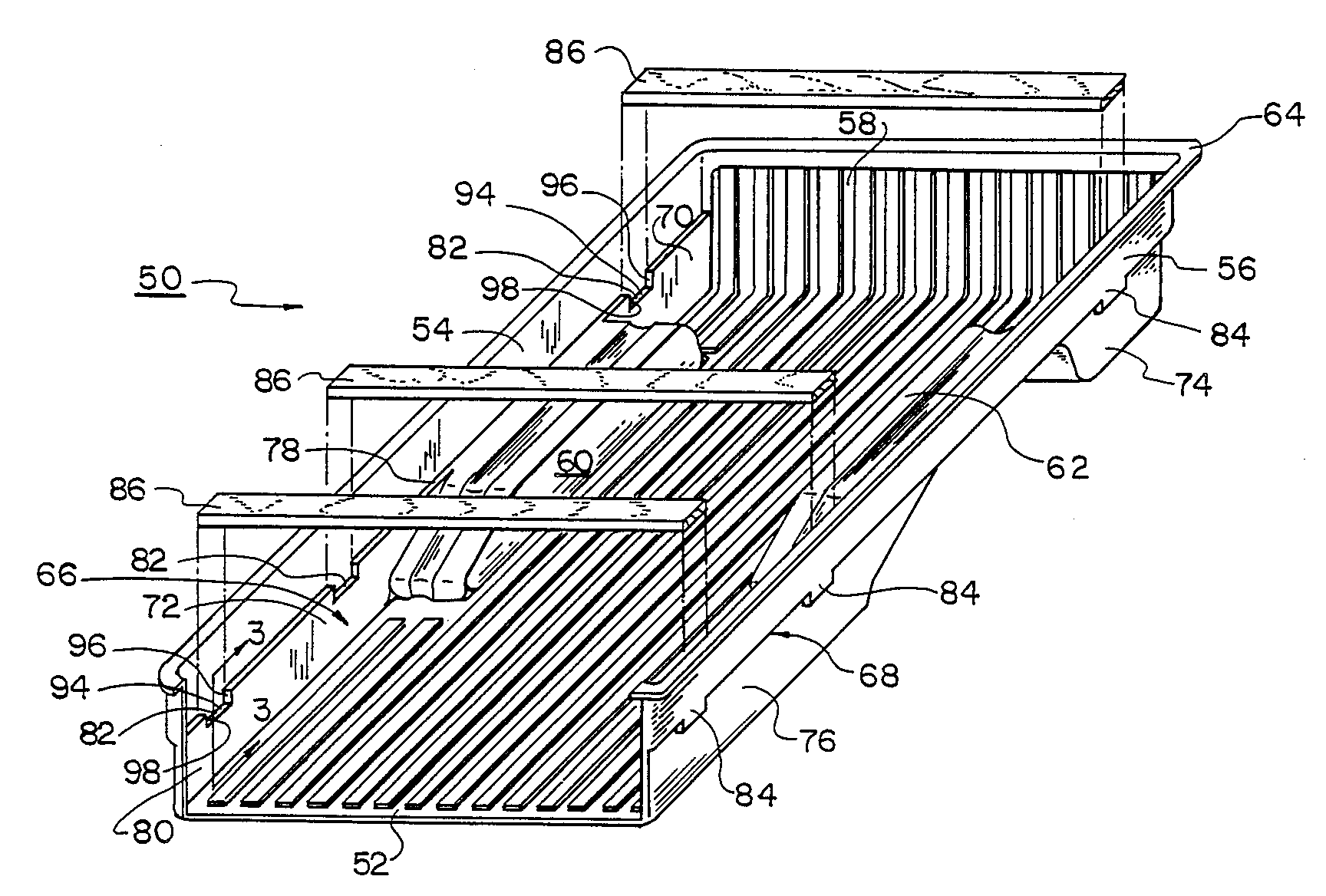

The present invention is directed to a truck bed liner having a front end and a rear end, the liner comprising a floor, opposed side walls having side edges joining the floor, a front wall having side edges joining the side walls and a lower edge joining the floor, and support elements associated with the side walls adapted to support a shelf member extending between the side walls within the liner above the floor. More specifically, the support elements comprise side wall portions extending within the liner between the side walls and having a horizontal upper surface adapted to support the shelf member. Preferably, retainers, which may be in the form of recesses formed in the side wall portions, are provided for retaining transverse shelf support members extending from one side wall to the other side wall.
First Claim
Other Claims data not available
