Core setter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 1988
Grant Date -
N/A
app pub date -
Jan 21, 1987
filing date -
Jan 24, 1986
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

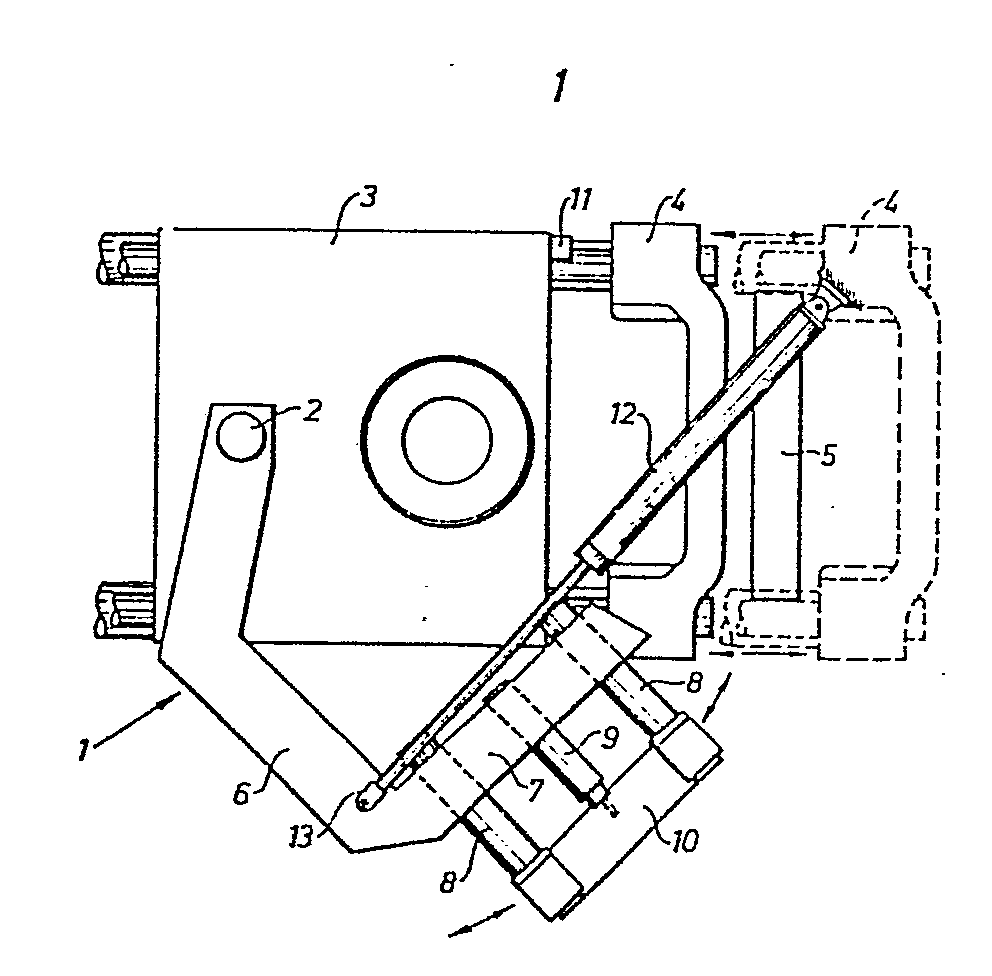

A core setter for use in setting one or more cores in the mould impression in the rearmost of a number of mould parts placed face to face during conveyance towards a pouring line. The setter consists of an essentially L-shaped swingable arm (1), which is pivotally journalled around a vertical axis (2) and at its free end, opposite the pivot, is provided with a core-retaining device (10), designed to accept cores in a position outside the moulding system and to deliver these into the mould impressions by a translational movement of the core-retaining device in the direction of conveyance of the mould parts.
