Forklift truck push-pull slipsheet handler for facilitating conversion of truck between slipsheet handling and pallet handling capabilities
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 24, 1987
Issued Date -
N/A
app pub date -
Nov 21, 1986
filing date -
May 9, 1983
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

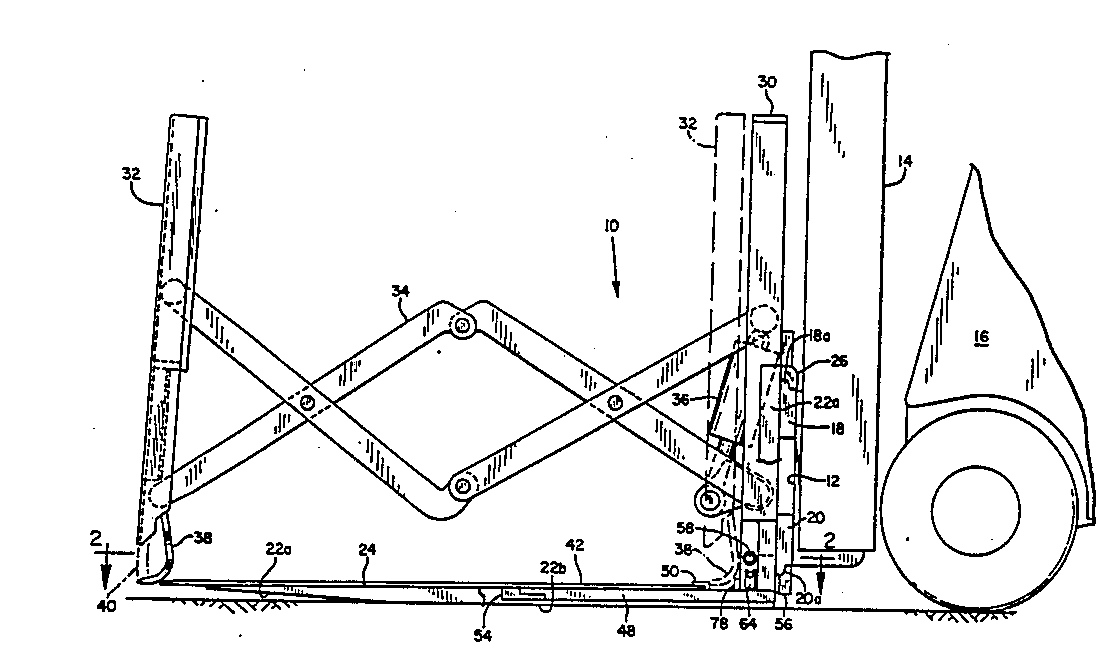

A push-pull slipsheet handler mountable on a standard hook-type lift truck carriage compatibly with load-handling forks mounted on the carriage. The slipsheet handler comprises a push-pull assembly and split platen, both of which receive their vertical support from the load-supporting surfaces of the forks. Attachment of the push-pull assembly to the lower hook-type bar of the carriage provides resistance against fore-and-aft movement of the slipsheet handler. To convert the truck rapidly to a fork-type truck capable of handling standard rigid pallets rather than slipsheets, the platen may be quickly removed leaving the push-pull assembly in place or, alternatively, the push-pull assembly and platen may be removed as an integral unit.
First Claim
Other Claims data not available
