Boiler for boiling mash or wort
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 21, 1987
Grant Date -
N/A
app pub date -
Dec 11, 1985
filing date -
Jan 21, 1985
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

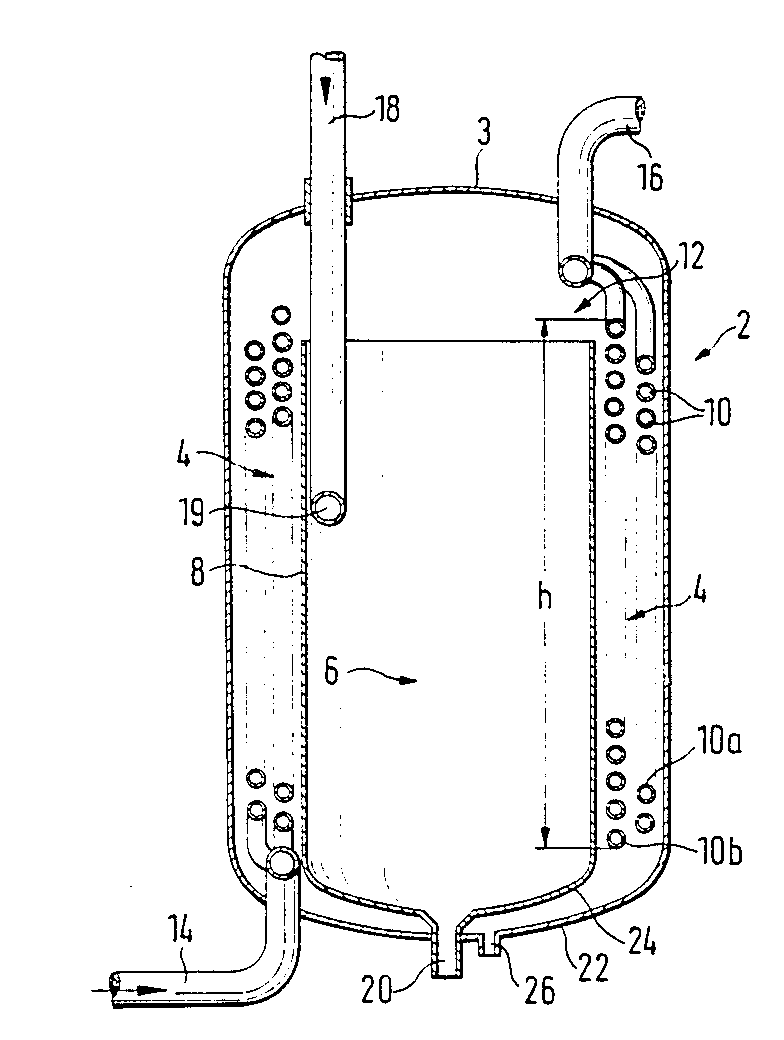

The invention relates to a boiler for boiling a mash or wort, having an interior partition dividing the boiler into a heat exchanger section and a precipitation section. The boiler according to the invention is characterized in that the partition divides the boiler into an inner precipitation section and a surrounding heat exchanger section, i.e. in that the precipitation section and the heat exchanger section are disposed one within the other. This results in the particular advantage that the overall height of the boiler may be reduced. Since in addition the full height of the boiler is available for the accommodation of pipe conduits in the heat exchanger section, the flow resistance in the pipe conduits may be reduced. In summary, the boiler according to the invention is of simple construction to thereby facilitate the cleaning thereof.
First Claim
Other Claims data not available
