Plastic card/key combination and hinge structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 7, 1987
Grant Date -
N/A
app pub date -
Apr 10, 1986
filing date -
Apr 10, 1986
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

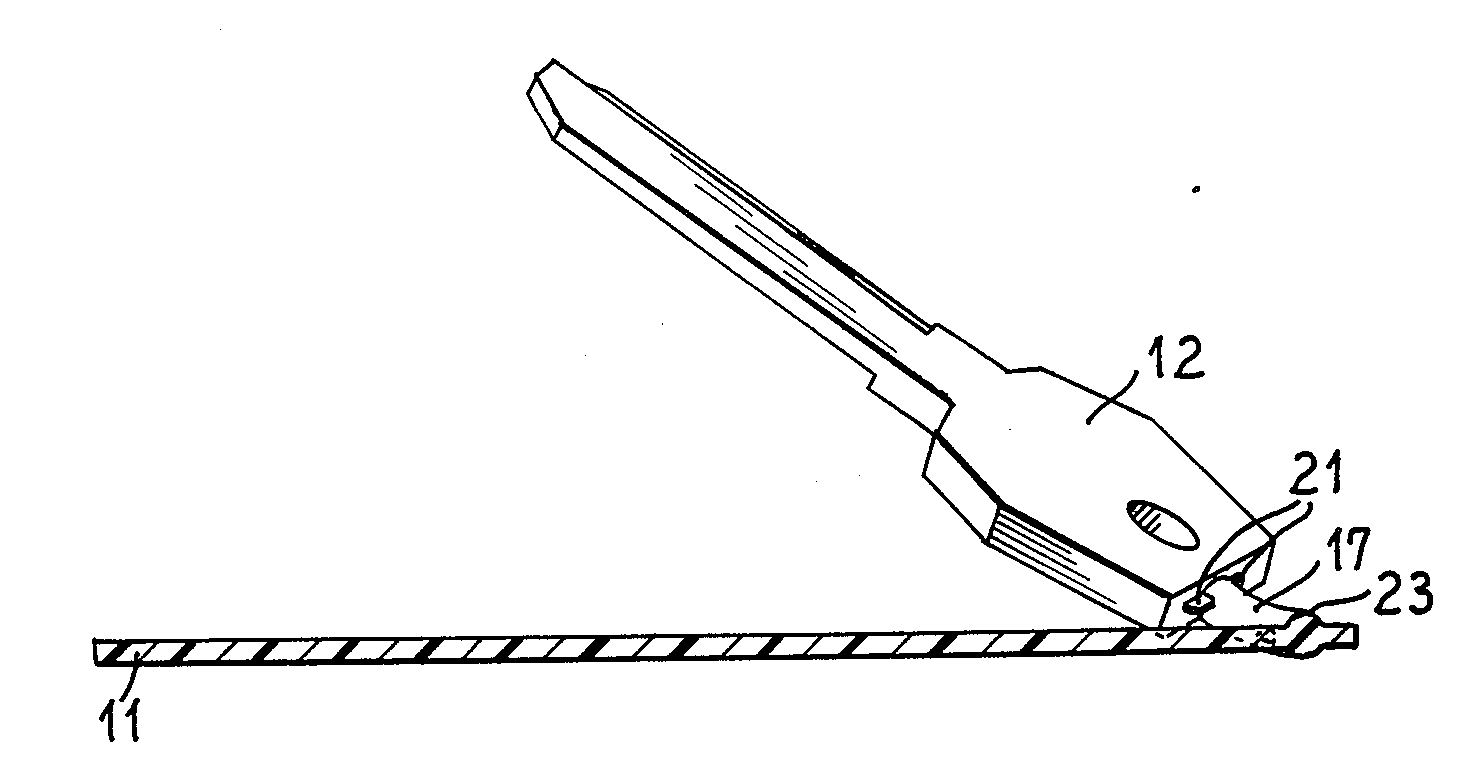

A key and card combination formed from molded plastic material comprises a key-shaped recess socket in the plane of the card, a key being separably located in the recess socket and formed in one piece with the card, and integral multidirectional hinge structure formed from the same material as the key and card and integrally connects an edge of a head end of the key to an edge of the card in the socket. The hinge adapts the key to be swung out of and swung back into the plane of the card. When the key is swung out of the plane of the card, the key is enabled to be twisted in various directions relative to the card on and about the hinge, laterally or about the axis of the hinge. In a preferred construction, the hinge structure comprises a rod-shaped elongated element.
First Claim
Other Claims data not available
