US Patent No: 4664000

Locknut key and mounting structure therefor

---

Abstract

---

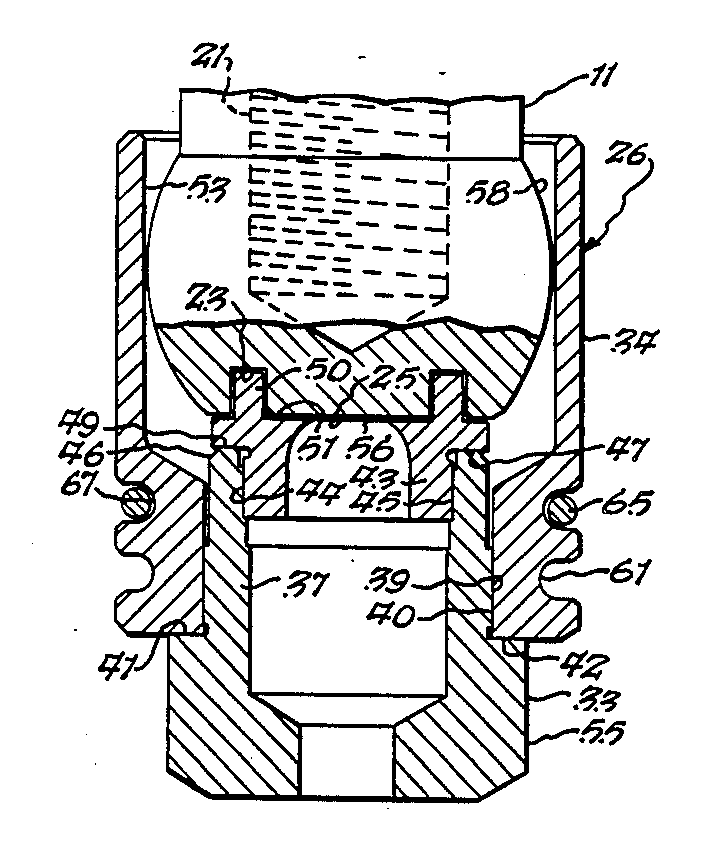

A locknut key including a key body, a key shroud mounted on the key body and a key member mounted on the key body within the shroud, the shroud extending for a substantial distance beyond the key to guide the key over the outer surface of a locknut which is to be turned by the key. A wrench-locknut key combination including a wrench having a shank, a U-shaped spring clip secured to the shank, a groove on the locknut key for receiving the U-shaped spring clip, and an elongated tie member for attaching the locknut key to the spring member.

---



---
