Block brake for rail vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 17, 1987
Grant Date -
N/A
app pub date -
Oct 11, 1984
filing date -
Oct 11, 1983
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

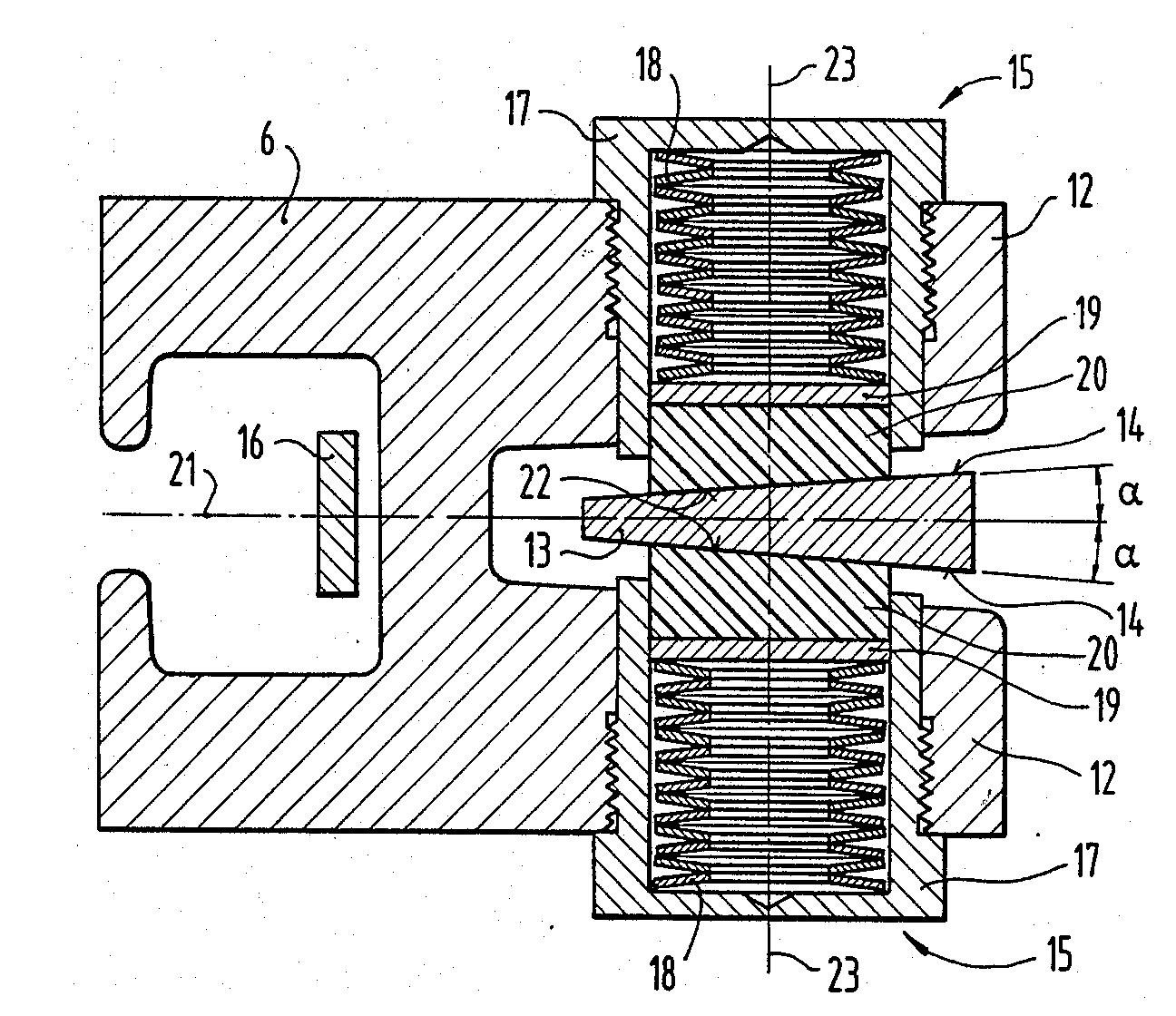

In a block brake with brake block regulator, which maintains the brake block shoe (6) in a predetermined rotational position about its rotational axis (5) through friction blocks (20) and friction surfaces (14), the friction surfaces (14) are in the form of wedge surfaces, such that, upon rotation of the brake block shoe (6) under the influence of gravity, the friction blocks (20) must be forced back through the friction surfaces (14) against their spring loading (18). This enables compensation of the turning moment brought to bear on the brake block shoe (6) by the gravitational force.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
KNORR-BREMSE GMBH | POSTFACH 40 10 60 D-8000 MUNCHEN 40 |
International Classification(s)

- 1984 Application Filing Year
- B61H Class
- 10 Applications Filed
- 0 Patents Issued To-Date
- 0 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Staltmeir, Josef | Munich, DE | 15 | 144 |
# of filed Patents : 15 Total Citations : 144 | |||
Wosegien, Bernd | Munich, DE | 4 | 15 |
# of filed Patents : 4 Total Citations : 15 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B61H Class
- 0 % this patent is cited more than
- 38 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Aug 27, 1998 | FPAY | FEE PAYMENT | year of fee payment: 12 |
Nov 01, 1994 | FEPP | FEE PAYMENT PROCEDURE | free format text: PAYER NUMBER DE-ASSIGNED (ORIGINAL EVENT CODE: RMPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY free format text: PAYOR NUMBER ASSIGNED (ORIGINAL EVENT CODE: ASPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
May 02, 1994 | FPAY | FEE PAYMENT | year of fee payment: 8 |
Aug 21, 1990 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Dec 09, 1989 | FEPP | FEE PAYMENT PROCEDURE | free format text: PAYOR NUMBER ASSIGNED (ORIGINAL EVENT CODE: ASPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
Mar 17, 1987 | I | Issuance | |
Jan 14, 1987 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Oct 11, 1984 | F | Filing | |
Sep 25, 1984 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST.;ASSIGNORS:STALTMEIR, JOSEF;WOSEGIEN, BERND;REEL/FRAME:004354/0529 Owner name: KNORR-BREMSE GMBH POSTFACH 40 10 60, D-8000 MUNCHE Effective Date: Sep 25, 1984 |
Oct 11, 1983 | PD | Priority Date |
