Hot liquid thermal energy storage tank and method

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 4643212
SERIAL NO

06594324

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

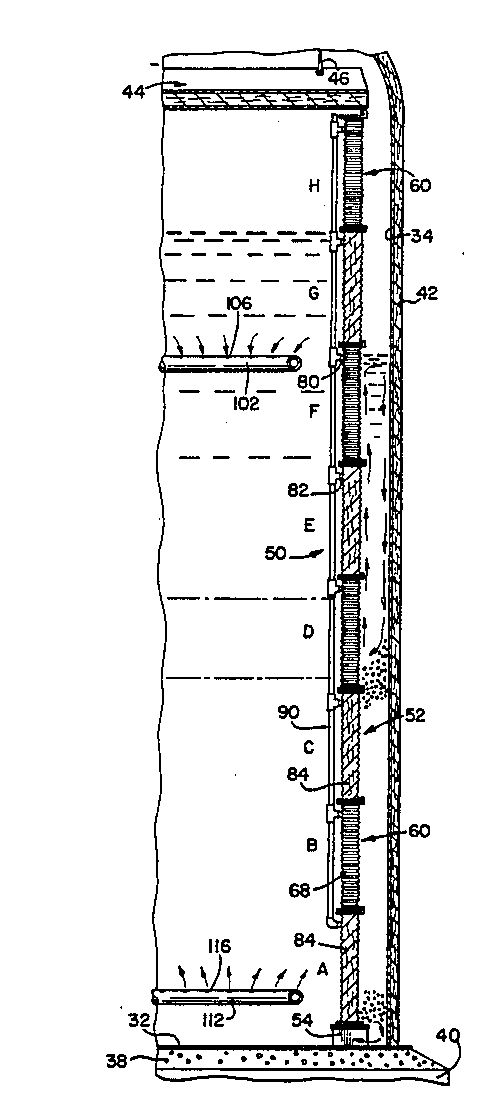

An enclosed storage tank for a hot liquid comprising a metal shell with a flat metal bottom, a vertical cylindrical metal side wall and a metal roof; a vertical cylindrical internal wall, supported by the tank bottom, axially located in the tank to provide an annular space between the tank side wall and the internal wall; openings to provide gravity flow of liquid between both sides of the internal wall; and the internal wall comprising a plurality of interconnected insulating blocks constituting thermal insulation surrounded by a covering layer impervious and corrosion resistant to hot liquid to be stored in the tank. A method of storing thermal energy as a hot liquid in the tank is also disclosed.
