Reinforced tool handle and method of manufacturing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 18, 1986
Issued Date -
N/A
app pub date -
Nov 5, 1984
filing date -
Aug 13, 1982
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

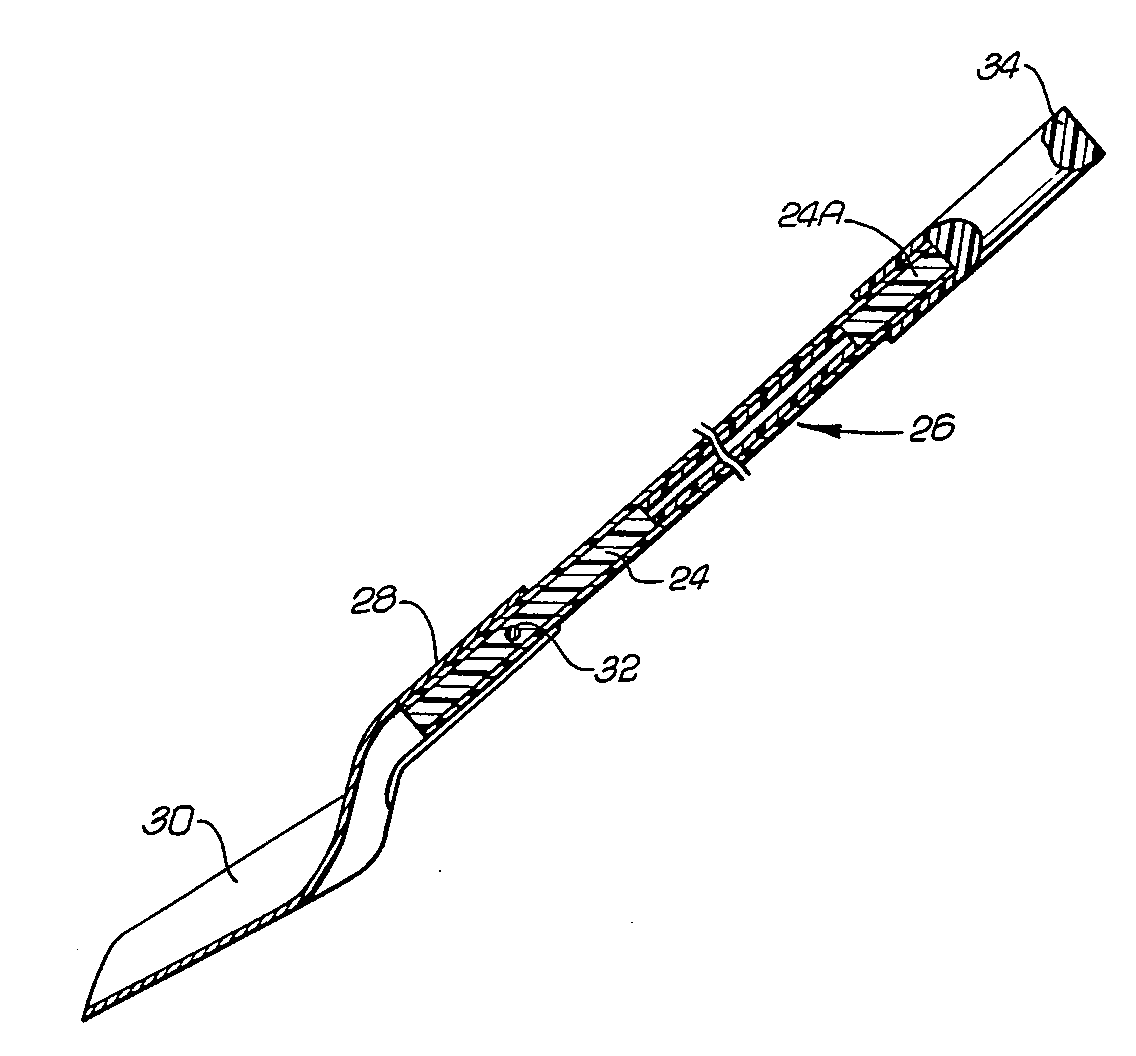

A reinforced tool handle and a method of producing the same are provided by which a hollow fiberglass rod is produced with a solid section integrally formed at predetermined stress points. The tool handle of this invention is formed by alternately feeding sections of a light weight core and a relatively strong solid core into the center of a die tube. The alternate cores are uniformly surrounded by resin coated fibers and pulled through the die tube to form a continuous rod having alternate light weight and strong solid cores. The continuous rod can then be cut as desired to form the reinforced tool handle of the present invention.
First Claim
Other Claims data not available
