Trailer hitch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 24, 1985
Grant Date -
N/A
app pub date -
Nov 23, 1984
filing date -
Nov 23, 1984
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

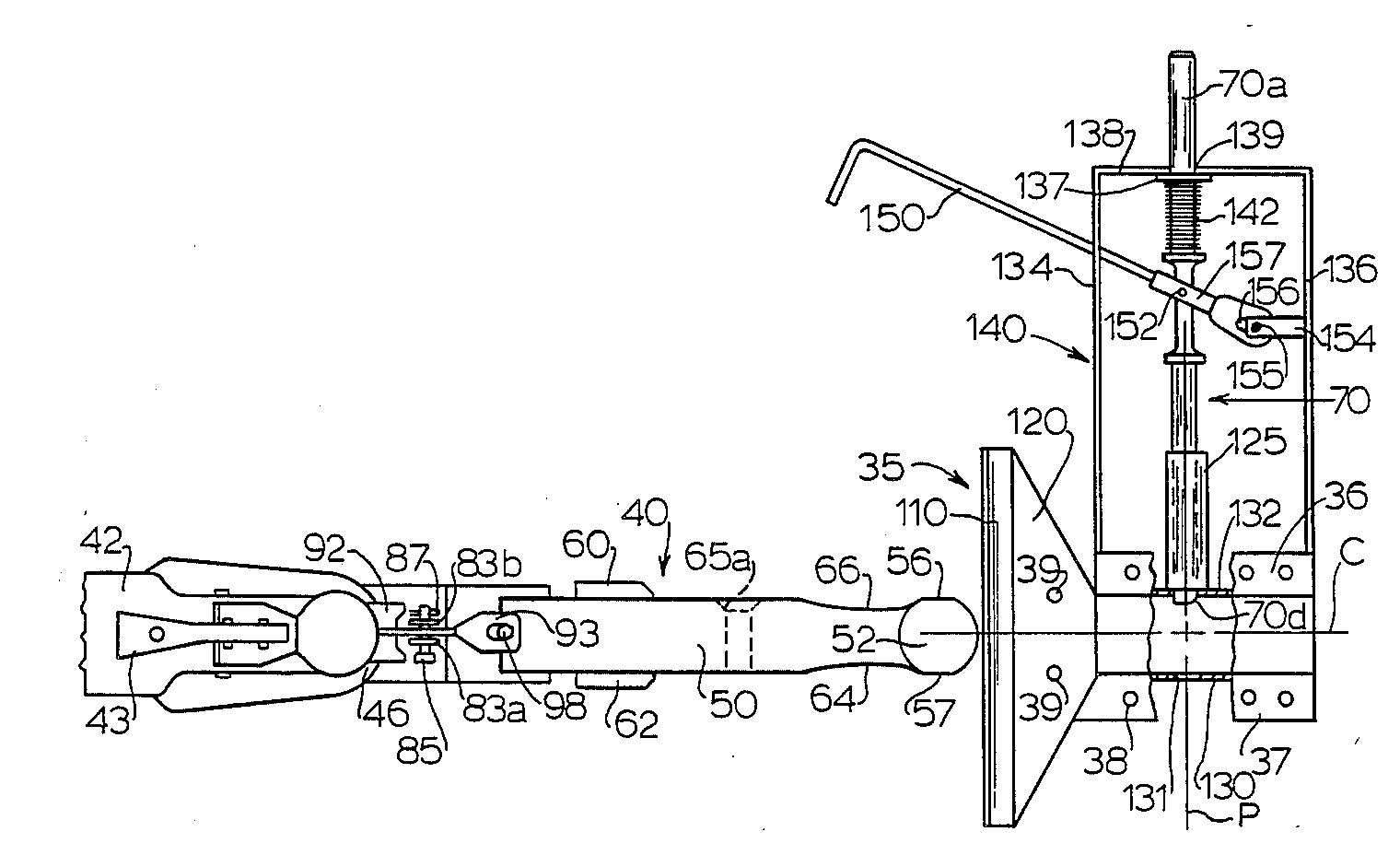

An automatic trailer hitch assembly mounts a shank unit on the trailer and a receiving unit on the towing vehicle. The shank unit provides an elongated shank member which mounts a trailer ball at one end coupled to a conventional trailer hitch ball socket housing secured to the trailer and at the opposite end is formed to slide on funnel-like guide passages into the receiving unit. The receiving unit has a locking pin which can be latched into a position allowing entry of the shank member into the receiving unit and when the shank unit is properly positioned therein is automatically unlatched and moved into a position for locking the shank unit and receiving unit together. The locking pin when restored to the latched position enables the shank unit to be withdrawn from the receiving unit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 34 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 40 Age
