Wheel for land vehicles and method for moving such vehicles over soft or irregular surfaces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 3, 1985
Grant Date -
N/A
app pub date -
Feb 16, 1983
filing date -
Feb 16, 1983
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

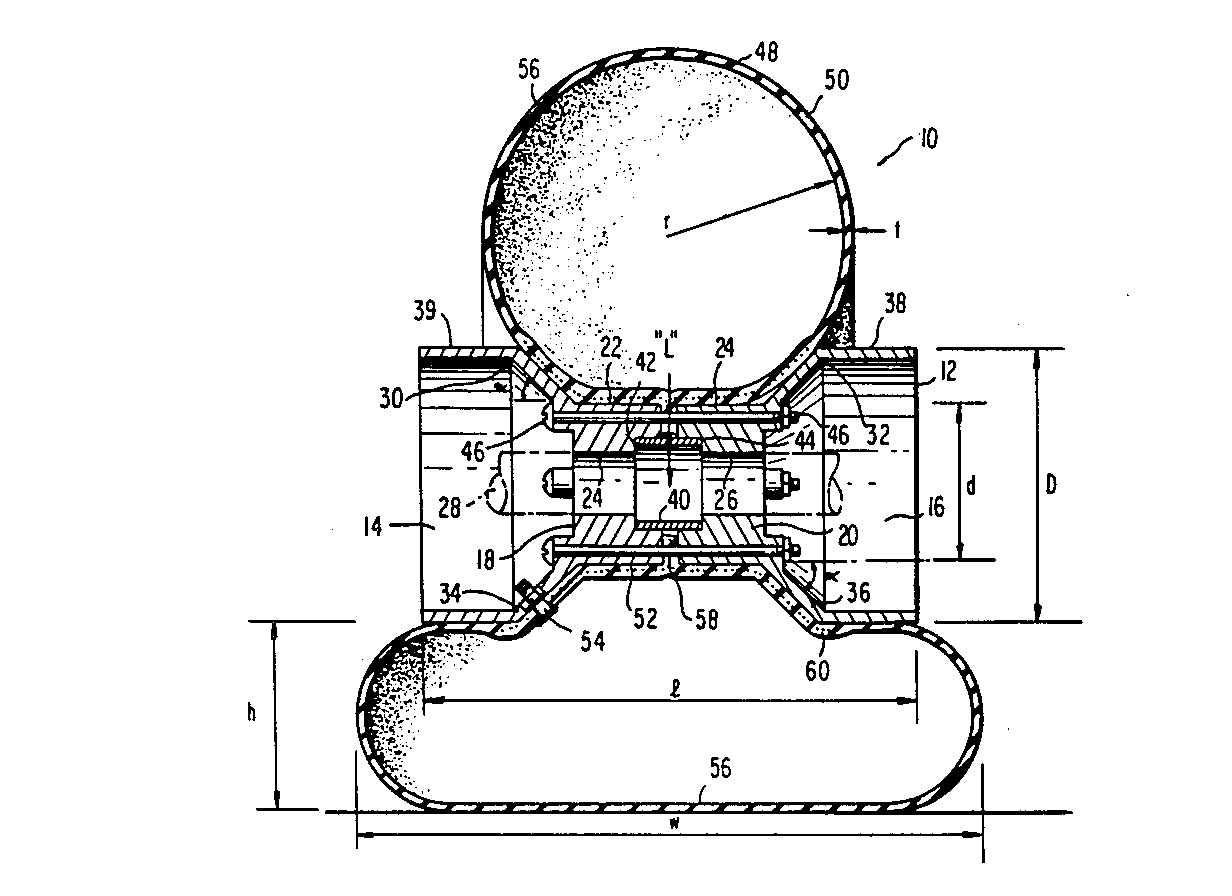

A wheel is disclosed for use on land vehicles such as small manually drawn trailers and similar carriers, the wheel having a tire supporting rim (12) and a low pressure tire (48) engaging the rim, the tire comprising a thin walled torus (50) of elastomeric material, the torus having an inner diameter surface (52) engaging the rim, an inflation valve (54) and an outer diameter surface (56) for contacting a soft or irregular support surface; so that, the tire deforms or flattens substantially when it contacts such surfaces with an axle load applied to the wheel, thereby facilitating movement of a vehicle over such surfaces. A method of moving such vehicles is also disclosed.
First Claim
Other Claims data not available
