Tower mounted mooring apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 14, 1985
Grant Date -
N/A
app pub date -
Mar 25, 1983
filing date -
Mar 25, 1983
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

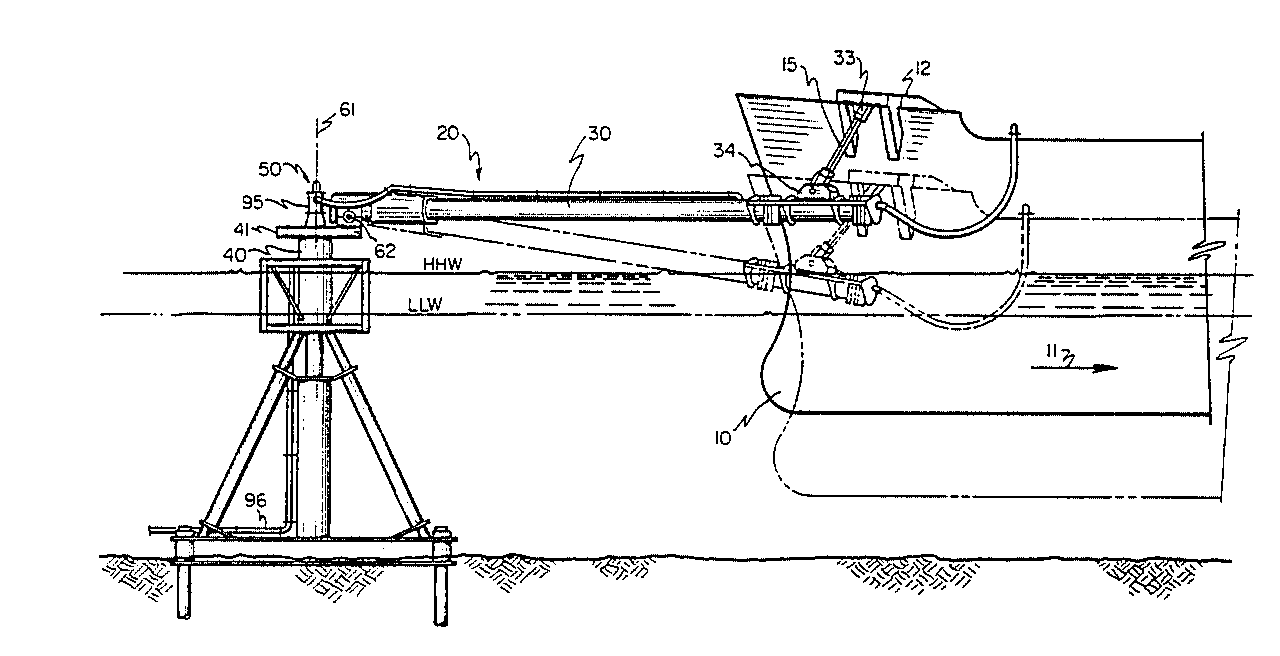

A single point mooring apparatus for tanker loading and discharging is disclosed having a fixed mooring tower and a yoke connected to the fixed tower by a triaxial articulation element for allowing the yoke to move while connected to a vessel in yaw, pitch and roll with respect to the mooring base. The yoke is shaped to straddle the bow of the moored vessel and is suspended above the water line with weighted pendants on port and starboard sides of the vessel, providing a resilient position restoring force to the vessel. Fluid transfer swivels and flexible hose connections in the cargo transfer conduits are all located above the water line.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 18 Citation Count
- B63B Class
- 0 % this patent is cited more than
- 40 Age
