Atomization apparatus and method for liquid fuel burners and liquid atomizers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 26, 1985
Grant Date -
N/A
app pub date -
Mar 17, 1983
filing date -
Mar 17, 1983
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

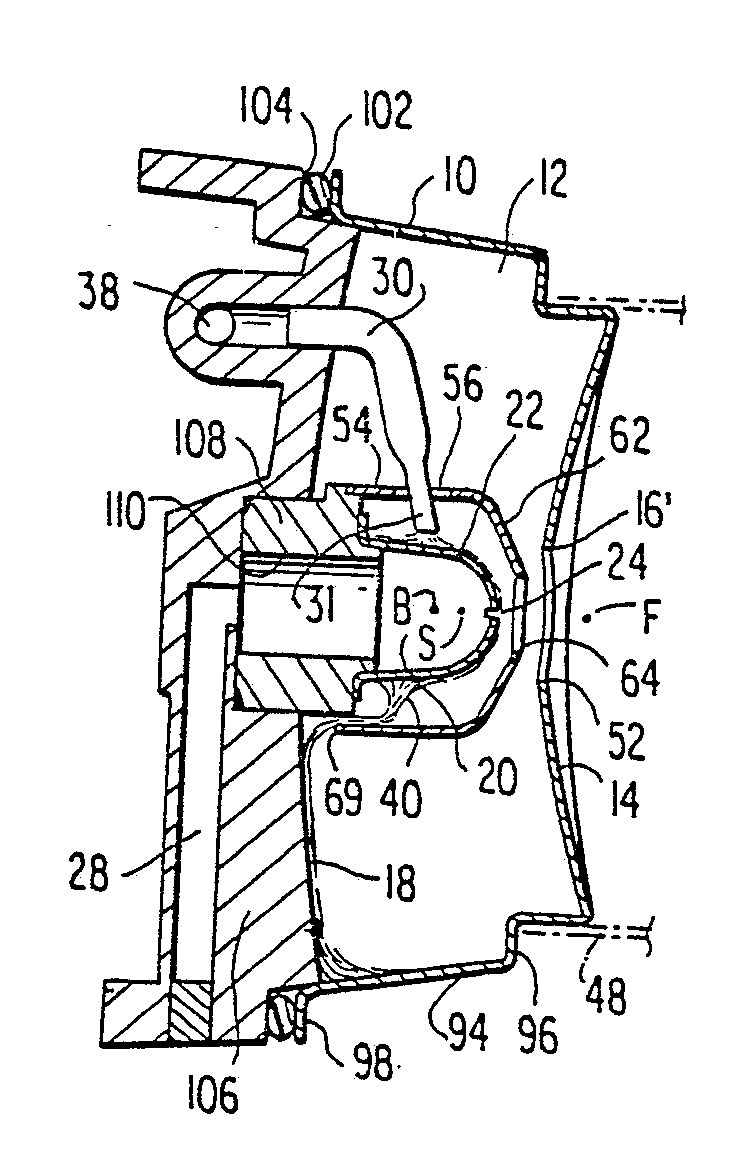

An improved apparatus and method for burning liquid fuel or atomizing liquid are disclosed for use in fuel burners or atomizers of the type which comprise a hollow atomizer bulb (20) having a smooth, preferably convex exterior surface (22) which tapers toward a small aperture (14) through which high pressure air or other gas is forced to atomize liquid as it flows in a thin film over the exterior surface of the bulb. Such atomizer bulbs are located within an atomizing chamber (12) through which a flow of air or other gas is directed toward a discharge opening (16,16') aligned with the aperture (24) of the atomizer bulb. To protect the thin film of liquid flowing over the exterior surface of the bulb, the bulb is enclosed within a shield (54-64) which also permits the atomizer bulb to be located closer to the discharge opening (16,16') so that the flame front (F) is positioned in the flame tube (48) rather than in the discharge opening.
First Claim
Other Claims data not available
