Adhesive binding strip

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 4496617
SERIAL NO

06499914

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage
Patent Longevity
    Expired
Forward Citations

Abstract

See full text

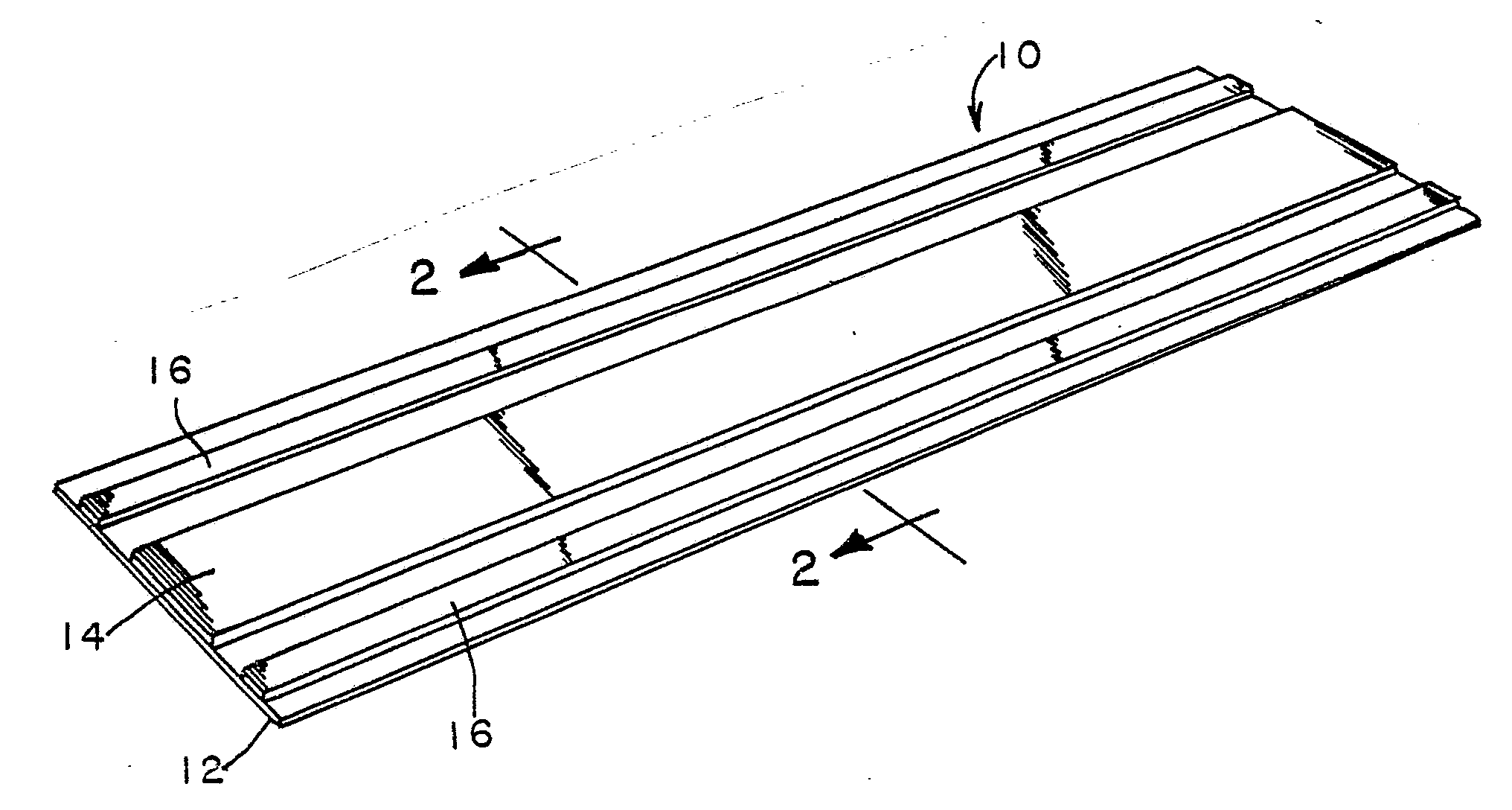

A binding strip for binding a stack of sheets together in a book-like fashion. The binder strip includes an elongated substrate made of a formable material such as a strip of heavy paper. A relatively wide band of heat-activated adhesive extends down the center of the substrate. Two relatively narrow bands of heat-activated adhesive are disposed on opposite sides of the central adhesive band. The central adhesive band, which has a low viscosity at the application temperature, serves to bind the edges of the sheets together and to the substrate. The side adhesive bands, which are at least one-half as thick as the central adhesive band and which have a high viscosity at the application temperature, functions to secure the first and last sheets of the stack to the substrate. The first and last sheets serve as the cover sheets of the bound volume. The side adhesive bands also function to contain the low viscosity central adhesive during the binding process. It is preferred that the side adhesive bands be spaced apart from the longitudinal edges of the substrate a minimum amount so as to form a pair of edge gaps. These gaps increase the gripping strength of the molten side adhesive bands during the binding process.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+
  • No Family data available.

Patent Owner(s)

Patent OwnerAddress
POWIS PARKER INC830 ISABELLA STREET OAKLAND CA 94607

International Classification(s)

loading....
  • 1983 Application Filing Year
  • B42D Class
  • 74 Applications Filed
  • 0 Patents Issued To-Date
  • 0 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances19830255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Parker, Kevin P 2015 Del Norte St., Berkeley, CA 94707 44 357

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 49 Citation Count
  • B42D Class
  • 0 % this patent is cited more than
  • 40 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges

Forward Cite Landscape

Load Citation
