Archery device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 1984
Grant Date -
N/A
app pub date -
Dec 3, 1979
filing date -
Dec 3, 1979
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

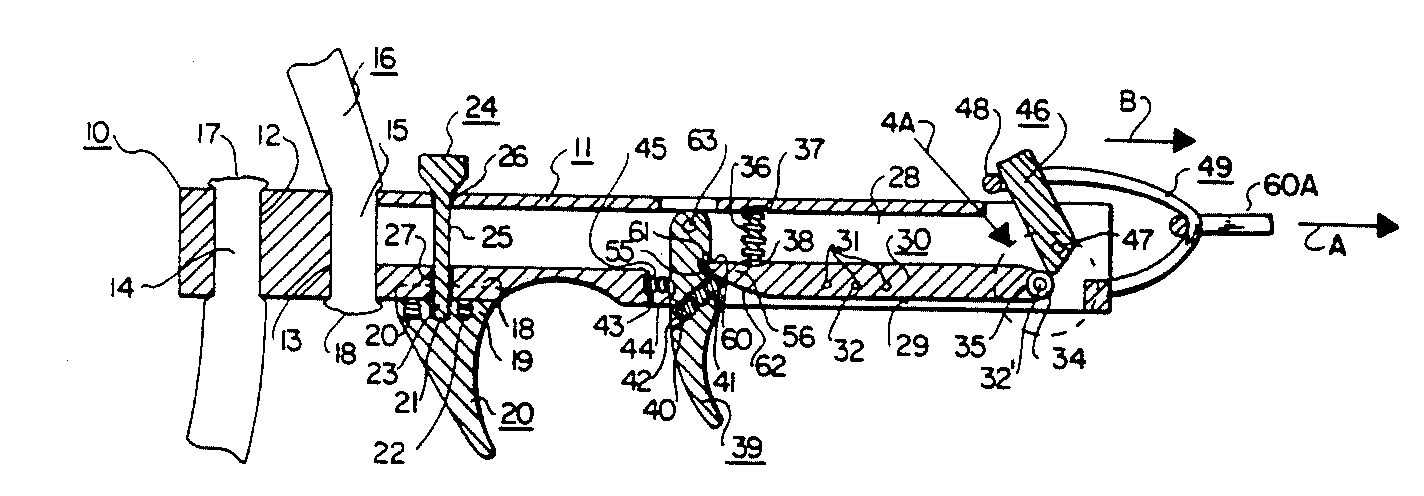

An archery device comprising a bowstring draw and trigger release mechanism wherein a trigger releasably retains a sear that actuates a release lever, the latter being used for releasing the bowstring loop incorporated in the device. In a preferred form of the invention the sear is provided with a roller or wheel that engages the engaged extremity of the release lever. Structure is provided for adjusting sear pressure relative to the shoulder of the notch provided the trigger; additionally, a locking screw is provided for adjusting the overlap of the sear surface with said shoulder. The finger grip employed posterior of the trigger is made adjustable for convenience of use by the operator.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 1979 Application Filing Year
- F41B Class
- 52 Applications Filed
- 1 Patents Issued To-Date
- 1.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 18 Citation Count
- F41B Class
- 0 % this patent is cited more than
- 41 Age
