Input torque control for a variable displacement hydraulic transmission
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 31, 1984
Grant Date -
N/A
app pub date -
Jul 31, 1981
filing date -
Jul 31, 1981
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

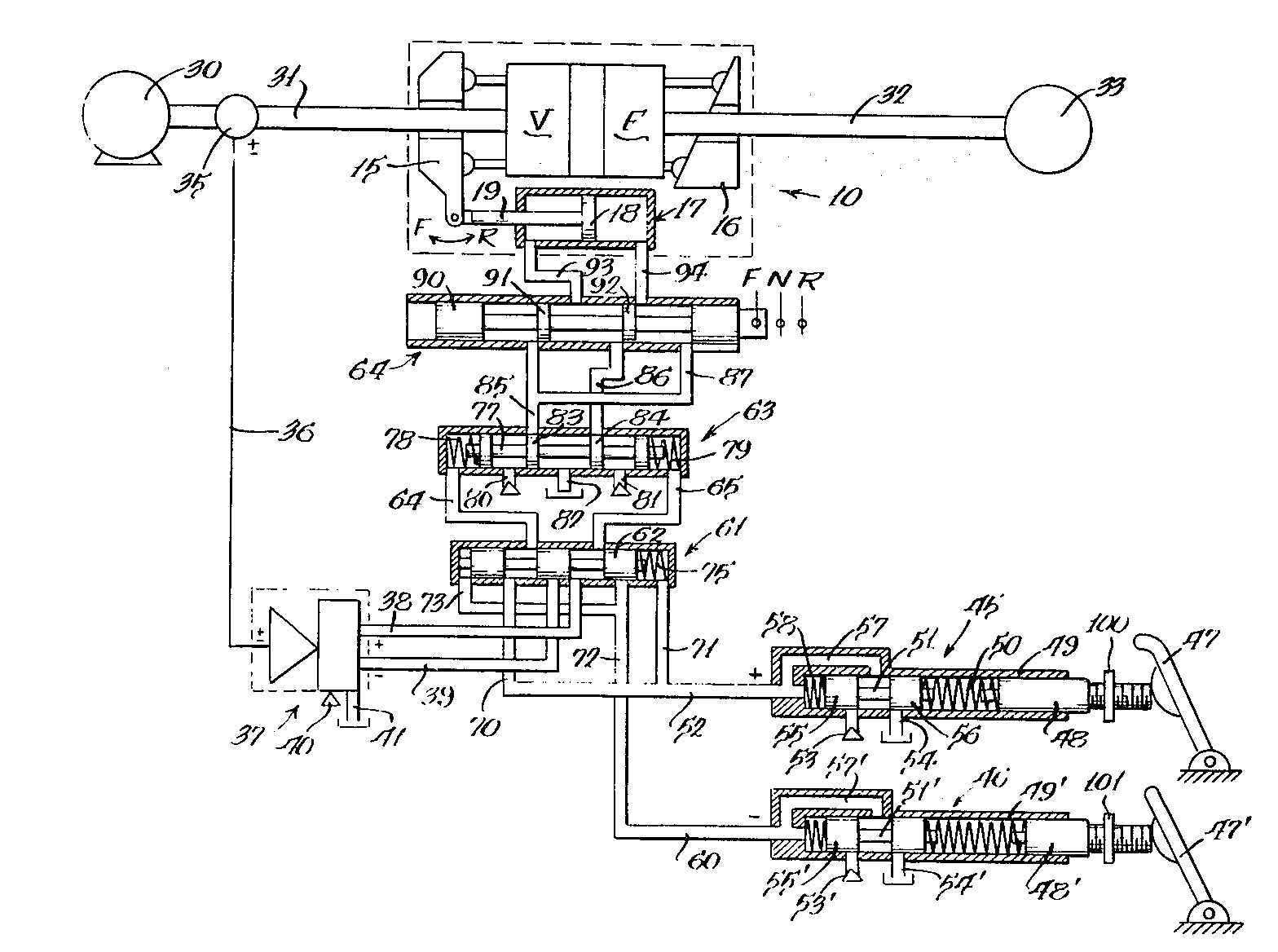

A torque control for a drive system having a hydraulic transmission connectable to a prime mover (30) and having a pair of hydraulically-connected displacement devices V and F, with one device having variable displacement, a torque sensor (35) generates a torque signal representative of prime mover output torque in either driving or braking mode, torque demand generators (47,47') generate a torque demand signal selectively in either driving or braking modes, a governor valve (63) compares the torque signals and generates a control signal and a control servo 17, responsive to the control signal, controls the displacement of the variable displacement device V to eliminate any difference in torque signals.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
SAUER INC | A CORP OF DE |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Bolinger, Jimmy W | Ames, IA | 2 | 13 |
# of filed Patents : 2 Total Citations : 13 | |||
Pollman, Frederic W | Ames, IA | 40 | 513 |
# of filed Patents : 40 Total Citations : 513 | |||
Reynolds, David W | Huxley, IA | 9 | 141 |
# of filed Patents : 9 Total Citations : 141 |
