Method and apparatus for detecting gas components in oil in oil-filled device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 24, 1984
Grant Date -
N/A
app pub date -
Jul 20, 1982
filing date -
Jul 27, 1981
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

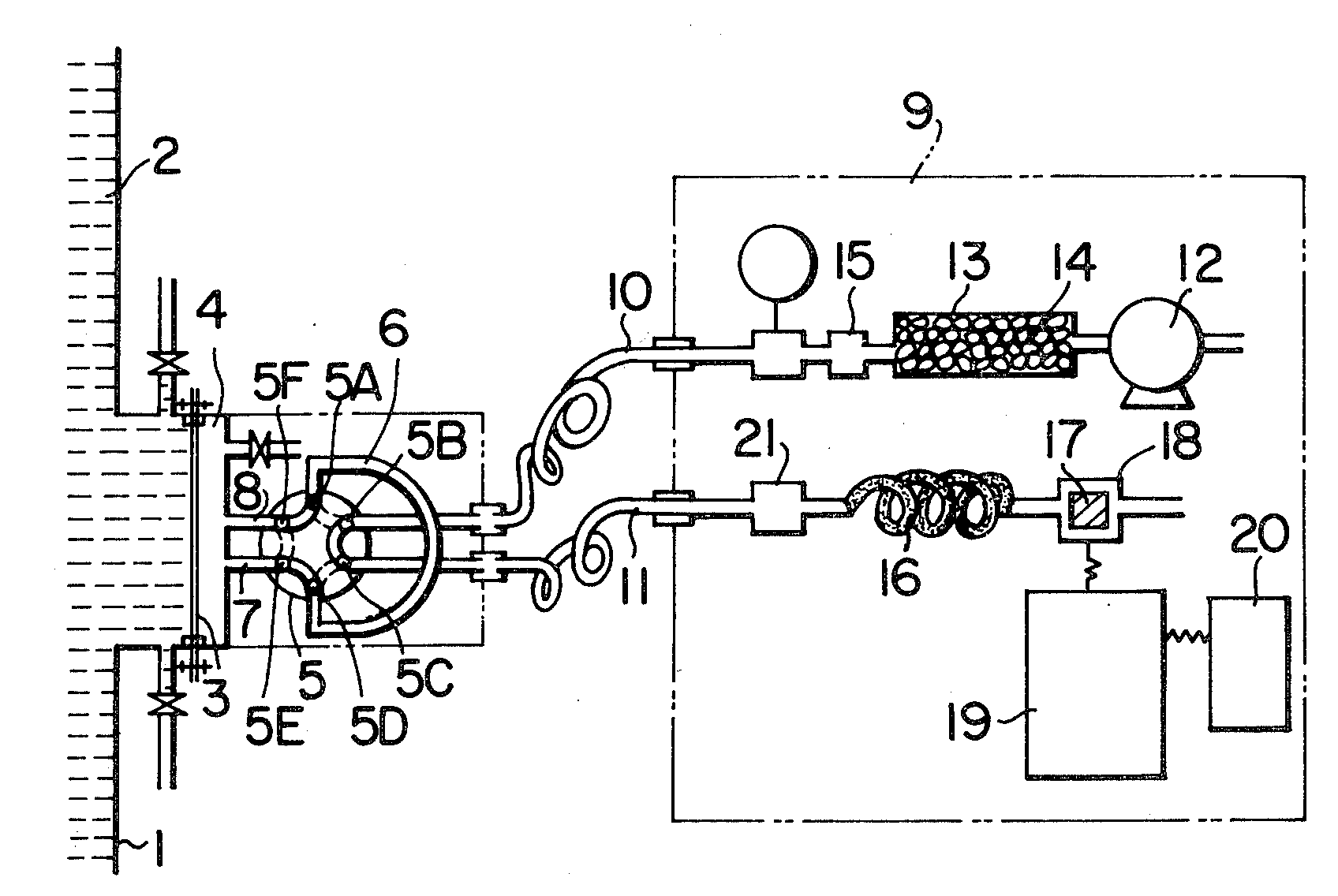

In an apparatus for detecting gas components in the oil in an oil-filled device, which comprises a gas-storing chamber being provided at an oil-filled device containing an insulating oil through a gas-permeating material capable of separating gas components from the insulating oil, a gas calibration tube being provided at the gas-storing chamber through a switch valve, and a gas chromatographic device connected to the gas calibration tube through the switch valve, any influence of gas components in a subatmospheric pressure is eliminated and exact concentrations of gas components are detected by providing at least one stirring mixer having at least one throttle perforation in a carrier gas passage for supplying the gas components from the gas calibration tube to the gas chromatographic device at the upstream side of a gas separation column of the gas chromatographic device, or by proving a circulation passage between the gas-storing chamber and the gas calibration tube, a valve capable of being exposed to the atmosphere at the circulation passage, and a gas circulation unit at the circulation passage for circulating the gas in the circulation passage.
