Compound bow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 1984
Grant Date -
N/A
app pub date -
Sep 28, 1982
filing date -
Sep 28, 1982
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

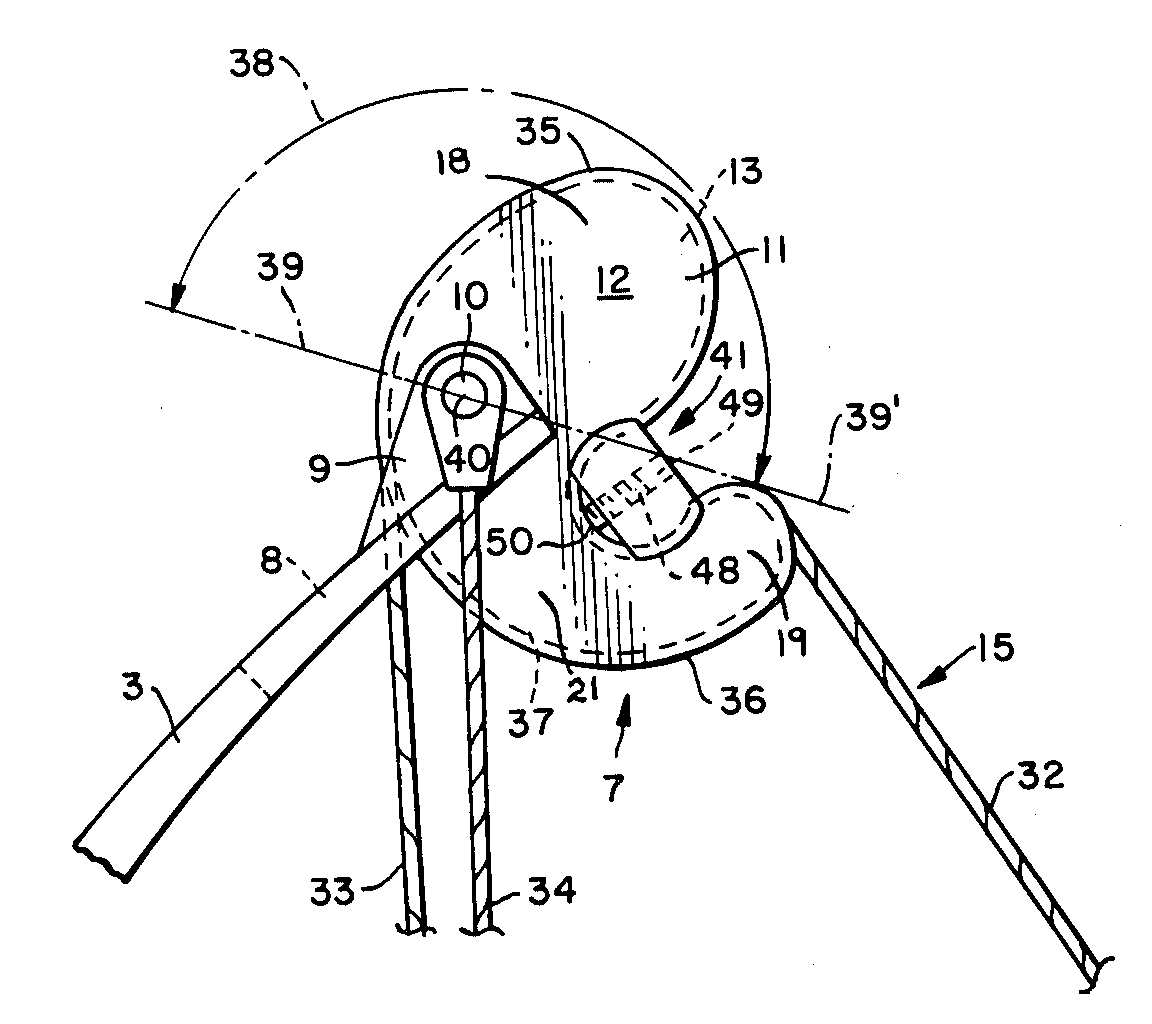

A compound bow includes improved low-rotation cam members eccentrically mounted upon the bow limp tips and each provided with an enlarged main body section, a reduced width intermediate section and an elongated terminal section generally defining an irregular kidney-shaped profile. A single cable groove or track extends continuously around the entire periphery of each cam and is disposed in a single vertical plane such that any stretch of cable extending between the tracks of the two cams will be substantially aligned with the bow center line. A single continuous cable stretch, having its opposite ends respectively joined to a bowstring and a tension cable, is sheaved about the track of each cam and is adjustably anchored thereto by means of a removable, lockable, rotating keeper whereby fine adjustment of the bow may be achieved without disassembly or removal of any cable lengths from the bow cams. The improved cam members may be employed not only in two-wheel compound bows but also in four and six wheel models.
First Claim
Other Claims data not available
