Power generation from waves near the surface of bodies of water
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 1983
Grant Date -
N/A
app pub date -
Jul 21, 1980
filing date -
Sep 12, 1983
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

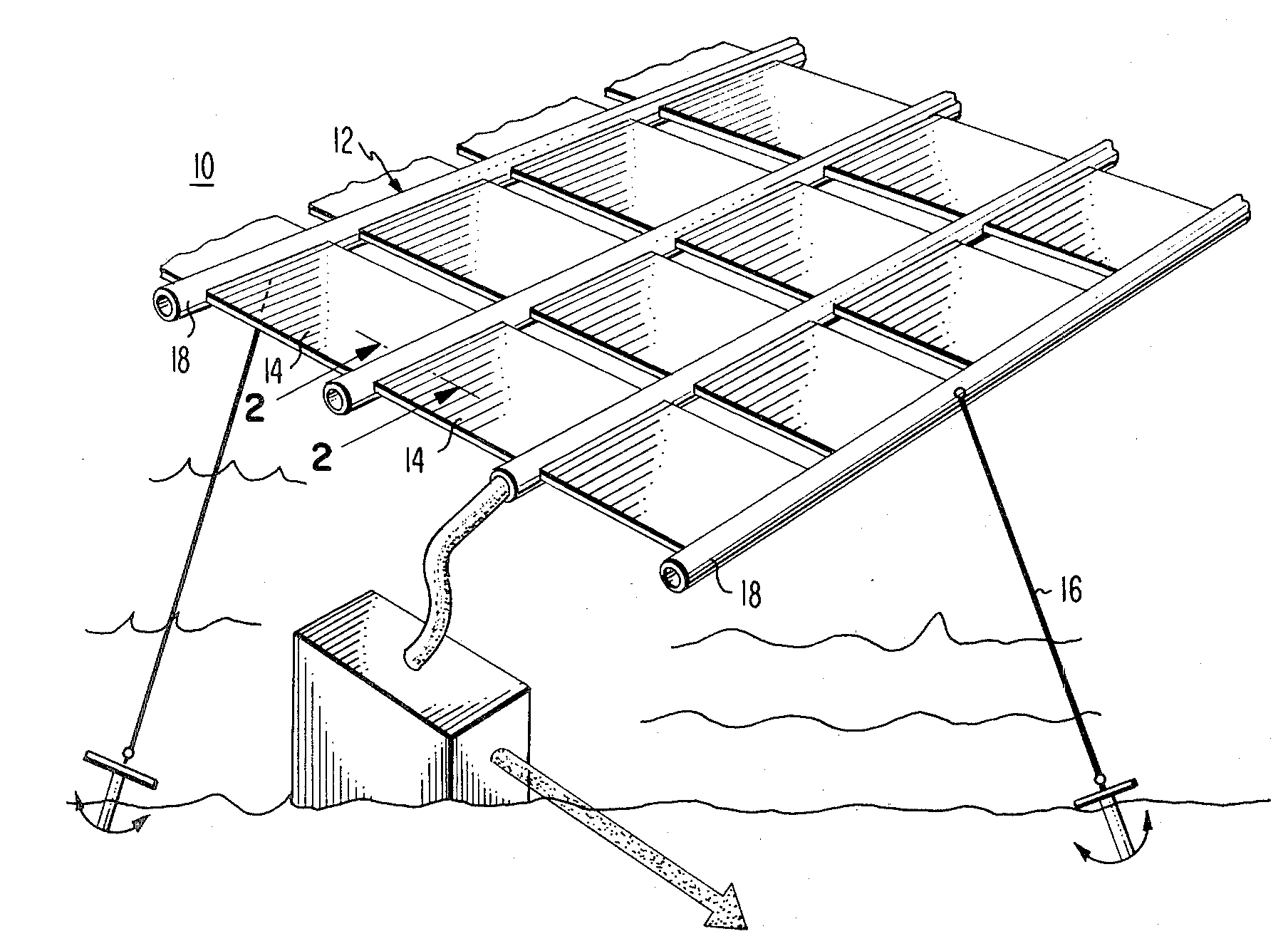

For the purpose of converting the mechanical energy of surface waves on bodies of water, a power generating piezoelectric structure (10) is provided comprising piezoelectric material members, preferably in the form of one or a laminate of sheets (14) of such material, each sheet having an electrode (24) on opposite surfaces thereof. Each pair of electrodes and the piezoelectric material therebetween define a power generating element, each of which is preferably dimensioned, relative to the wave lengths of selected waves on the body of water in which the generator is to be used, for increasing the efficiency of power conversion. A support means (12) is provided for maintaining the structure in a preselected position within and below the surface of the water. Preferably, the piezoelectric generating elements are flexible and are supported in such manner to allow flexure thereof in response to movement of the surrounding water. In certain embodiments, the elements are designed to enter into mechanical resonance in response to the passage of waves thereover, such flexure and/or resonance increasing the mechanical coupling efficiency between the waves and the elements.
First Claim
Other Claims data not available
