Check valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 20, 1982
Grant Date -
N/A
app pub date -
Aug 28, 1980
filing date -
Aug 28, 1980
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

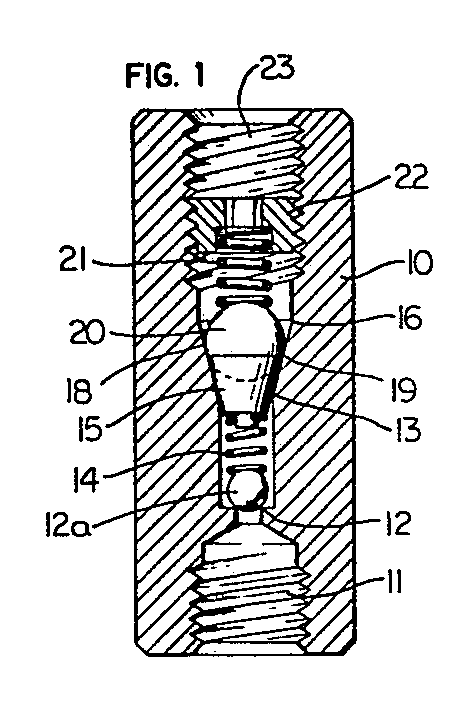

A ball check valve having a body with a through passageway having an internally restrictive frustoconical seat is provided with a frustoconical metallic backup member having a different cone angle than the seat and a large diameter ball having a maximum diameter greater than the maximum diameter of the backup member, the backup member having a contoured large diameter axial end face for receipt of a portion of the ball such that a seal is provided between the seat and the ball and between the backup member and the seat and means urging the ball against the backup member large diameter axial end and the backup member against the seat.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
LUBRIQUIP INC | 18901 CRANWOOD PARKWAY CLEVELAND OH 44128 |
International Classification(s)

- 1980 Application Filing Year
- F16K Class
- 626 Applications Filed
- 5 Patents Issued To-Date
- 0.80 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Snow, John P | Sagamore Hills, OH | 6 | 139 |
# of filed Patents : 6 Total Citations : 139 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 11 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 43 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Feb 26, 2003 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Jan 27, 2003 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
Jan 26, 2003 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Jan 26, 2003 |
Aug 13, 2002 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Jan 26, 1999 | I | Issuance | |
Jun 21, 1996 | F | Filing | |
Jun 21, 1996 | PD | Priority Date | |
Jun 13, 1996 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNOR:GRUNDI, BERNARD E.;REEL/FRAME:008202/0422 Owner name: DATA STITCH, INC., TEXAS Effective Date: Jun 13, 1996 |
