Variable tape advance imprint marker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 1982
Grant Date -
N/A
app pub date -
Dec 17, 1979
filing date -
Dec 17, 1979
priority date (Note) -
Expired
status (Latency Note)
Importance

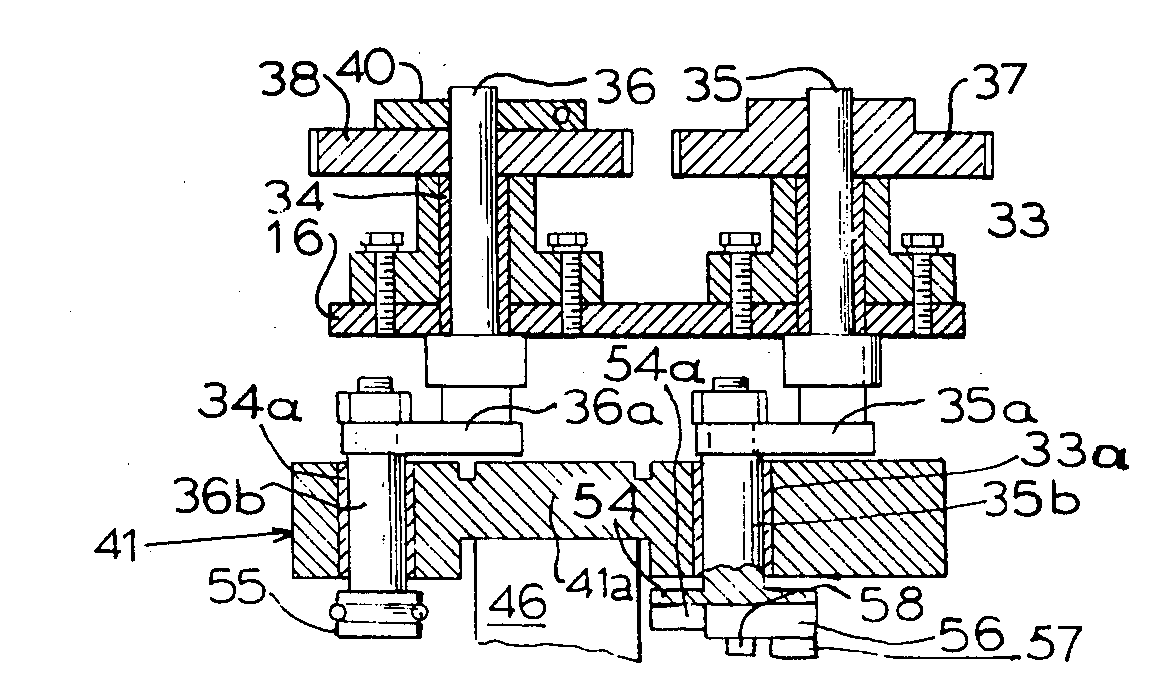

Abstract
A continuous motion ribbon imprinter moves with and marks a moving web on a packaging machine and has an easily set control adjusting step-by-step advance of the ribbon across the type block to accommodate wide variations in the size of the printed indicia so as to always present just enough length of fresh ribbon to cover the type for the next imprint. A frame mounting the type block and ribbon reels swings in either a clockwise or counterclockwise orbital path having a dwell stroke on the moving web, and a lift stroke spacing the ribbon from the web. The ribbon remains stationary on the type block during the dwell stroke and is advanced across the type block on the lift stroke. A single input shaft drives the frame through its orbital path and also drives the mechanism for unwinding the fresh ribbon from one reel and winding the spent ribbon on a second reel. The control includes an adjustable cross head driving a link which in turn drives a feed roll mechanism through a one way clutch pulling the needed length of ribbon from the unwinding reel during the lift stroke. The winding reel is driven through a slip mechanism which maintains the ribbon under tension and winds the spent ribbon on the winding reel as it is pulled step-by-step by the feed roll mechanism.
First Claim
Other Claims data not available
