Ventilation system for automated mining machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 29, 1980
Grant Date -
N/A
app pub date -
Nov 7, 1978
filing date -
Nov 7, 1978
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

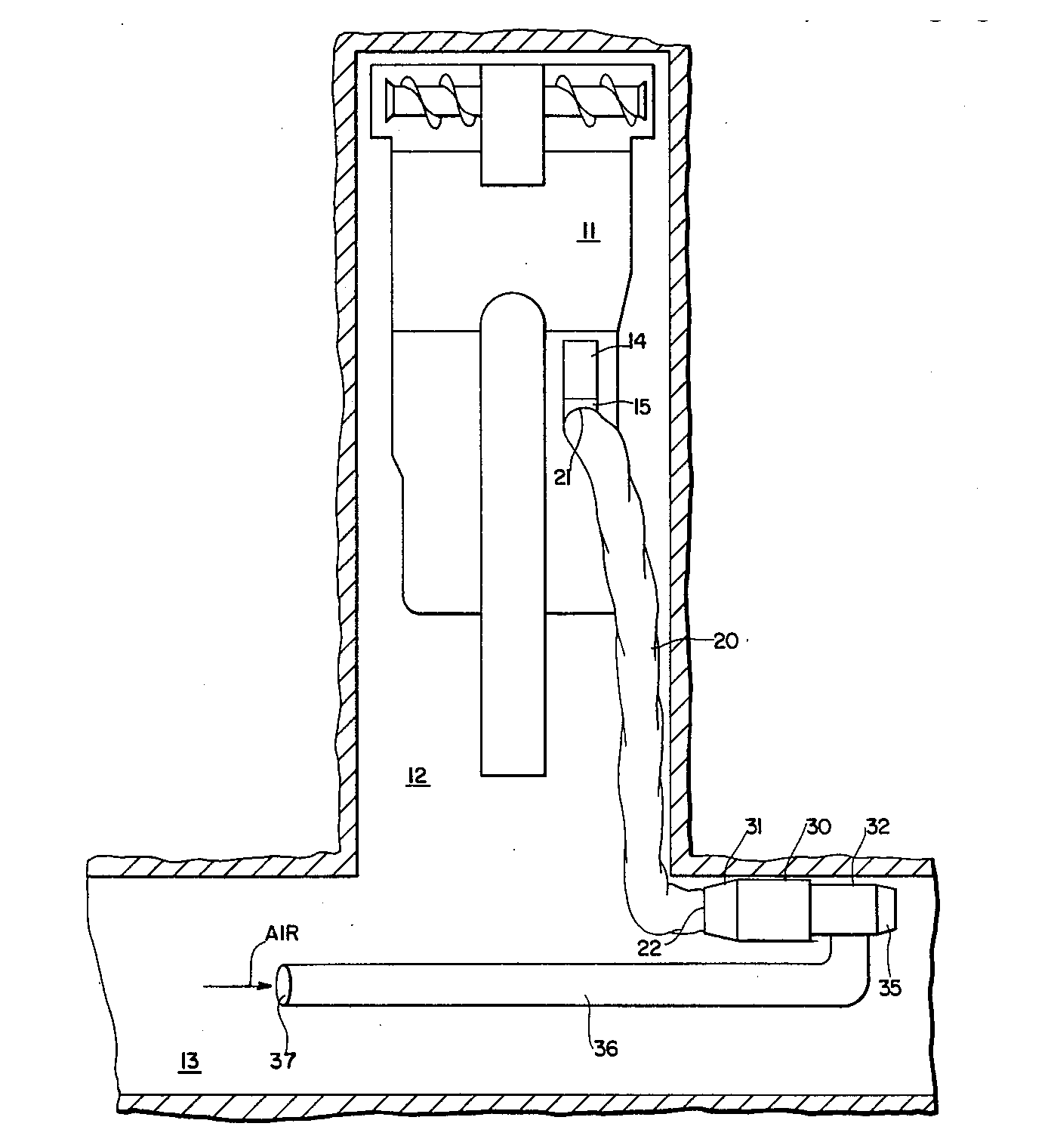

A mine ventilation system and method are provided for continuously supplying fresher air to an automated mining machine located in a mine heading. A blower attached to a mining machine operates to suck fresher air into the heading from a tunnel with through ventilation and to exhaust the air out of the heading through a collapsible duct. A standby blower is provided which is activated should the machine blower not be functioning for whatever reason. This blower draws fresher air from the tunnel with through ventilation and blows it out through the collapsible duct, in a direction opposite to the normal air flow, and into the heading. The standby blower is located in the tunnel downstream of the heading and has an intake duct with an inlet upstream of the heading.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
- THE UNITED STATES OF AMERICA AS REPRESENTED BY THE SECRETARY OF THE INTERIOR
International Classification(s)

- 1978 Application Filing Year
- E21F Class
- 7 Applications Filed
- 0 Patents Issued To-Date
- 0 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Kissell, Fred N | Pittsburgh, PA | 2 | 16 |
# of filed Patents : 2 Total Citations : 16 | |||
Matta, Joseph E | Bel Air, MD | 5 | 17 |
# of filed Patents : 5 Total Citations : 17 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 5 Citation Count
- E21F Class
- 0 % this patent is cited more than
- 45 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Feb 08, 2010 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Jan 08, 2010 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Jan 08, 2010 |
Jan 08, 2010 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
Jul 20, 2009 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Jun 30, 2005 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Oct 31, 2004 | FEPP | FEE PAYMENT PROCEDURE | free format text: PAYOR NUMBER ASSIGNED (ORIGINAL EVENT CODE: ASPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
Jan 08, 2002 | I | Issuance | |
Jul 28, 1999 | F | Filing | |
Jul 16, 1999 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:SUZUKI, HIDEKI;OKAMOTO, ICHIRO;MIZUSHIMA, KAZUMITSU;AND OTHERS;REEL/FRAME:010137/0627 Owner name: FUJI PHOTO FILM CO., LTD., JAPAN Effective Date: Jul 16, 1999 free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:SUZUKI, HIDEKI;OKAMOTO, ICHIRO;MIZUSHIMA, KAZUMITSU;AND OTHERS;REEL/FRAME:010137/0627 Owner name: NIPPON LIGHT METAL COMPANY, LTD., JAPAN Effective Date: Jul 16, 1999 |
Jul 30, 1998 | PD | Priority Date |
