Oil-collecting ship for oil spills
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 1980
Grant Date -
N/A
app pub date -
Jul 3, 1978
filing date -
Oct 13, 1977
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

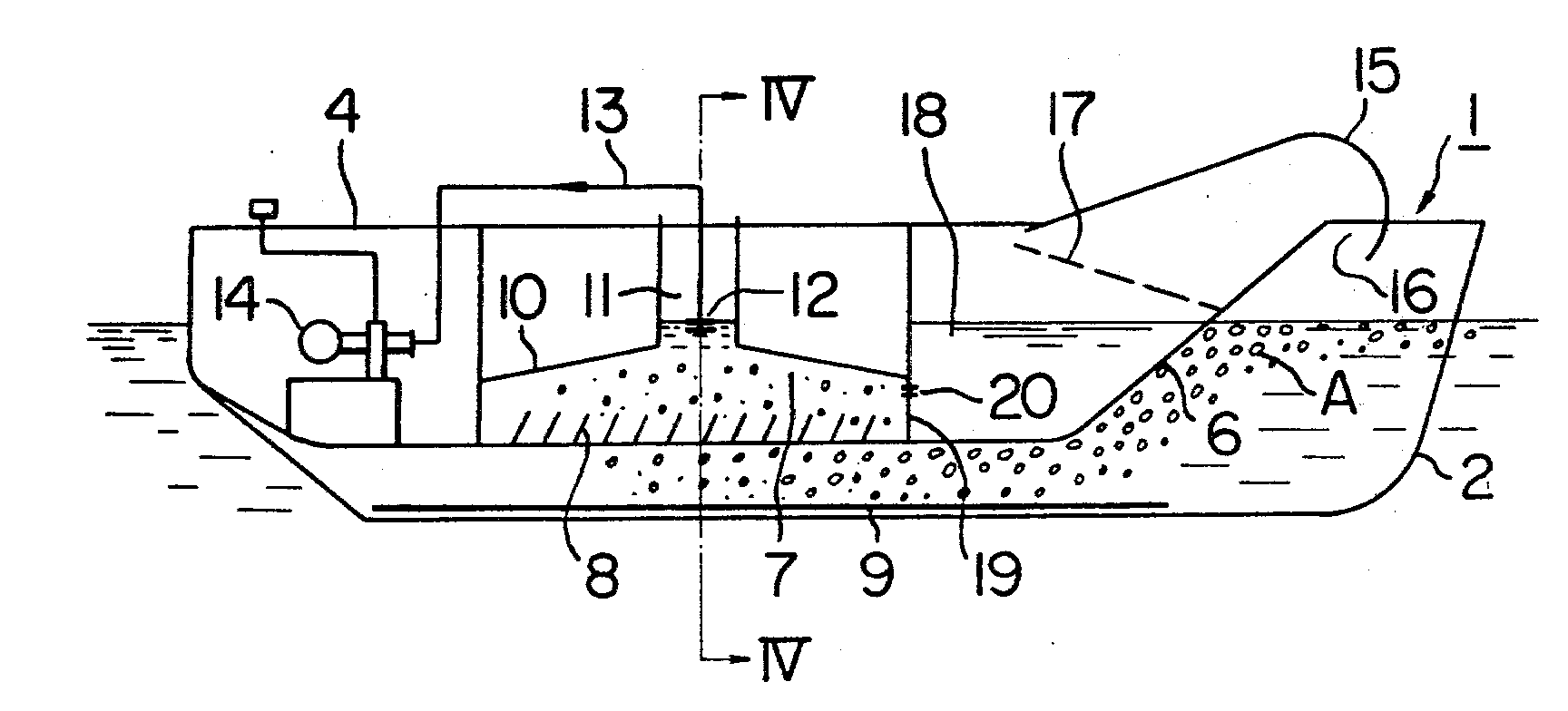

A ship for collecting oil from oil spills floating on the surface of the sea comprising a pair of side hulls forming between them a flow passage through which a stream of oil-laden water will flow when the ship travels through the floating oil on the sea. Between the side hulls, a center hull is provided in which a well is formed having a bottom which opens into the flow passage and through which the oil in the passage may float upwardly to be trapped in the well. A pump is provided to pump the trapped oil from the well. The bottom of the well is below the surface of the sea and the stream is deflected under the bottom by a forwardly-inclined segment extending between the side hulls. A splash plate is provided to overlie the upper end of the segment to direct the upward splashes from the segment over the top edge of the segment into a splash chamber behind the segment. The water and/or oil collected in the splash chamber may flow into the well through a communicating opening.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 1978 Application Filing Year
- E02B Class
- 91 Applications Filed
- 0 Patents Issued To-Date
- 0 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- E02B Class
- 0 % this patent is cited more than
- 45 Age
