ACOUSTIC RESONATOR AND FILTER DEVICE WITH BALANCED CHIRPING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 18, 2024
app pub date -
Jul 18, 2023
filing date -
Jul 18, 2022
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

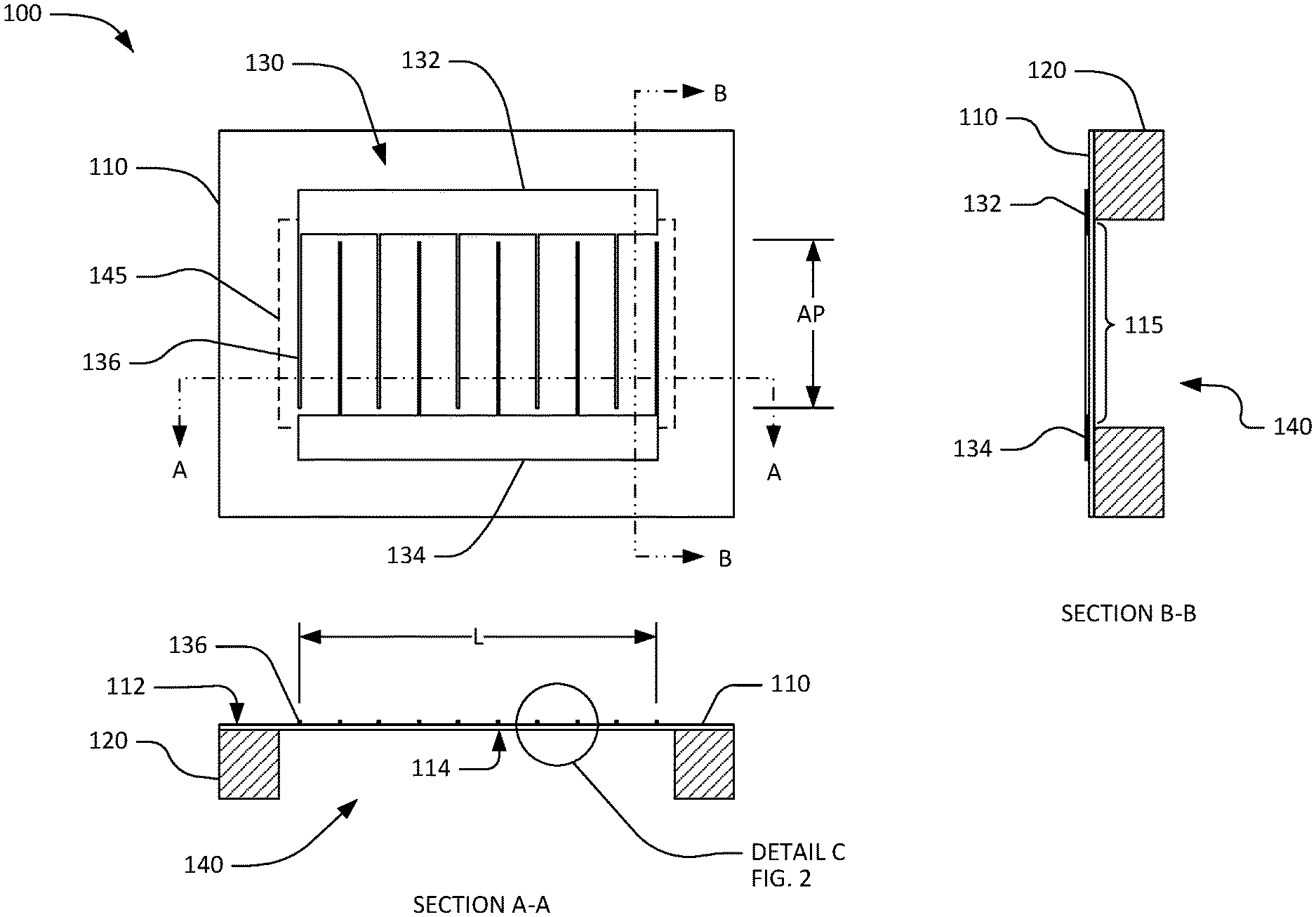

An acoustic resonator is provided that includes a substrate; a piezoelectric layer supported by the substrate; and an interdigital transducer (IDT) at a surface of the piezoelectric layer. The IDT includes a pair of busbars and a plurality of electrode fingers extending from the first and second busbars to be interleaved with each other. The respective widths of at least a portion of the electrode fingers increases in a direction from respective first ends of the first and second busbars to the respective second end of the first and second busbars. Moreover, a pitch of the portion of the electrode fingers decreases in the direction from the respective first ends of the first and second busbar to the respective second ends of the first and second busbars.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
MURATA MANUFACTURING CO | NAGAOKAKYO-SHI 26-10 TENJIN 2-CHOME KYOTO-FU 617-8555 |
International Classification(s)

- 2023 Application Filing Year
- H03H Class
- 901 Applications Filed
- 148 Patents Issued To-Date
- 16.43 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
DYER, Greg | Santa Barbara, US | 48 | 158 |
# of filed Patents : 48 Total Citations : 158 | |||
KOULAKIS, John P | Los Angeles, US | 6 | 0 |
# of filed Patents : 6 Total Citations : 0 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- H03H Class
- 0 % this patent is cited more than
- 1 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 18, 2027 |
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 18, 2031 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 18, 2035 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 3.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
