DOOR LATCH WITH SELF-HEALING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2024
app pub date -
Jul 5, 2023
filing date -
Jul 7, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

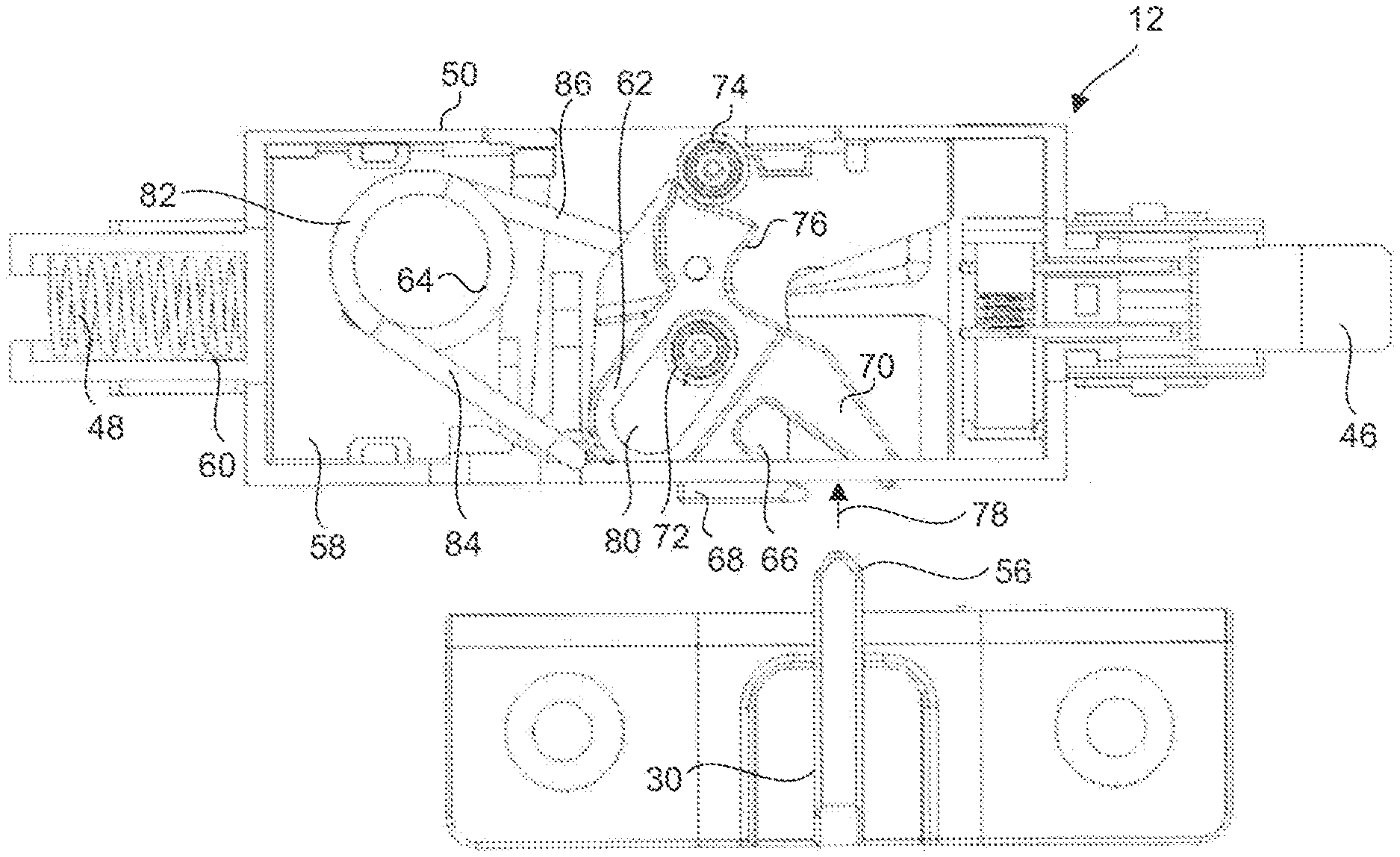

A domestic electrical appliance, for example a dishwasher, is disclosed, in which a door latch is installed in a profile strip of an appliance body. The door latch comprises a latch housing in which, in some embodiments, a rotary gripper and a leg-torsion spring serving as a closing spring are accommodated. In one embodiment, the door latch as a whole is displaceable in the profile strip in the strip longitudinal direction thereof in order to implement a self-healing function which allows the door to close even after the door latch has moved into a closed state without the door being closed. In another embodiment, a housing main part of the latch housing is mounted in a longitudinally fixed manner on the profile strip, but a housing cover of the latch housing is longitudinally displaceable relative to the housing main part, and the torsion spring and the rotary gripper are held on the housing cover.
First Claim
Other Claims data not available
