FASTENER DRIVING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2024
app pub date -
Dec 7, 2021
filing date -
Dec 16, 2020
priority date (Note) -
Published
status (Latency Note)
Importance

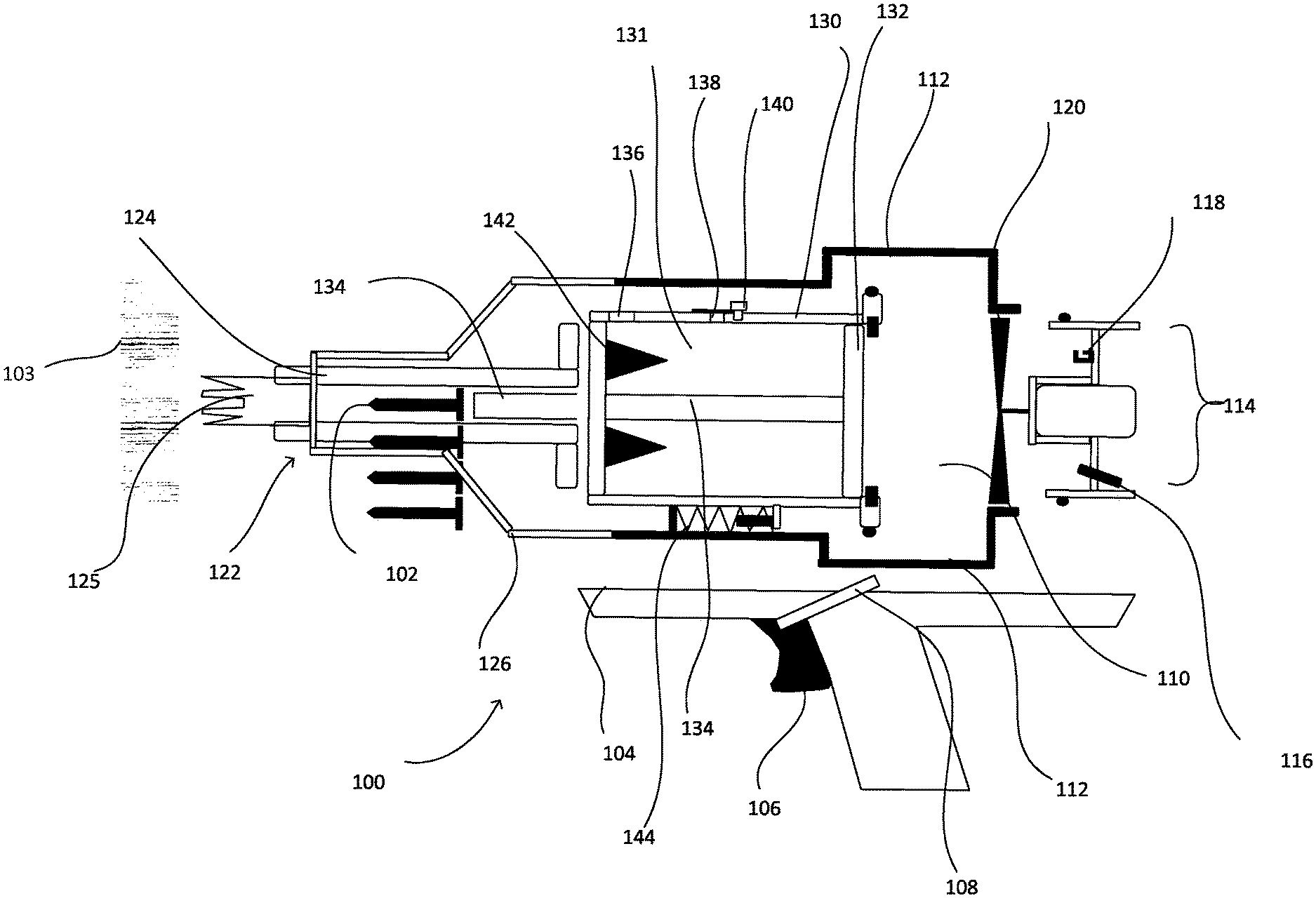

Abstract
A fastener driving device comprising a combustion chamber, a piston and a fastener channel. The piston is coupled to the combustion chamber and slidable within a sleeve such that combustion gas expansion in the combustion chamber causes the piston to slide from a first position to a second position. The fastener channel is configured to receive a fastener, wherein when moving from the first position to the second position the piston is configured to engage the fastener and drive it from the device. According to a first example the device further comprises a return chamber configured to receive gas from the sleeve via a first vent, and the device comprises a second vent coupled to the return chamber and configured to supply combustion gas from the combustion chamber to the return chamber. According to a second example the combustion chamber comprises a moveable housing portion, wherein combustion gas expansion in the combustion chamber acts on the moveable housing portion such that the moveable housing portion moves in a first direction to open the combustion chamber and exhaust combustion gases.
First Claim
Other Claims data not available
