VEHICLE-MOUNTED IN-SITU MAGNETIC FIELD DECONTAMINATION DEVICE FOR HEAVY METAL CONTAMINATED SOIL WITH RETRACTABLE BAFFLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2024
app pub date -
Jul 6, 2023
filing date -
Jul 6, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

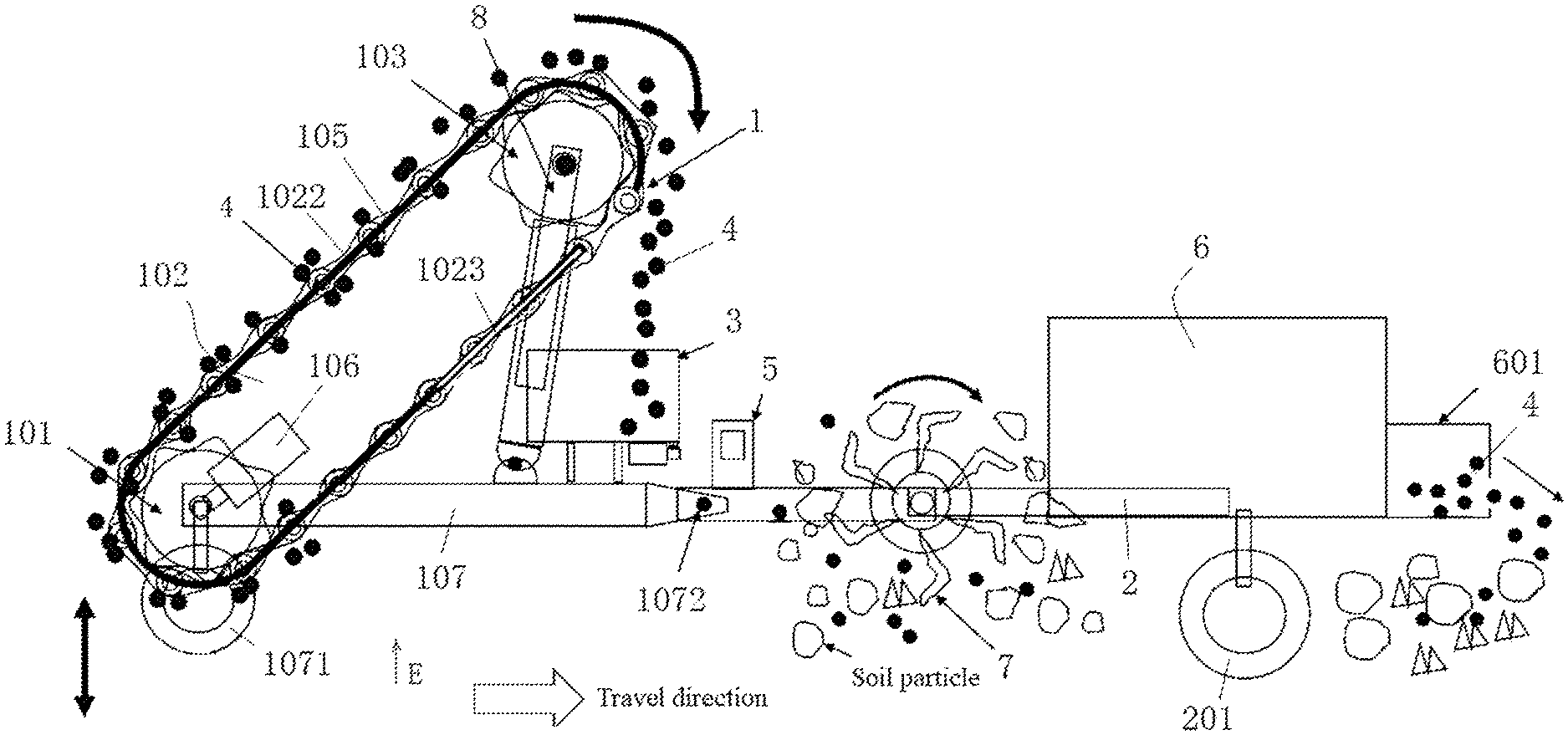

A vehicle-mounted in-situ magnetic field decontamination device for heavy metal contaminated soil with a retractable baffle is provided and includes a mounting frame, a plurality of magnetic rods circumferentially move along the mounting frame, the mounting frame and a lifting regulator are hinged with an agricultural machinery frame body, and an upper end of the mounting frame is supported by the lifting regulator. A magnetic particle recovery assembly is arranged below the upper end of the mounting frame. A retractable baffle assembly includes baffle springs and non-magnetic baffles, which each sleeve a corresponding magnetic rod. A turn-over channel for the retractable baffle assembly to move is provided at a middle part of mounting frame. Compression flaps are provided at both sides of turn-over channel, and an ejection flare for the ejection of the non-magnetic baffles is formed between free ends of the compression flaps at both sides.
First Claim
Other Claims data not available
