MILKING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2024
app pub date -
Sep 2, 2021
filing date -
Sep 3, 2020
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

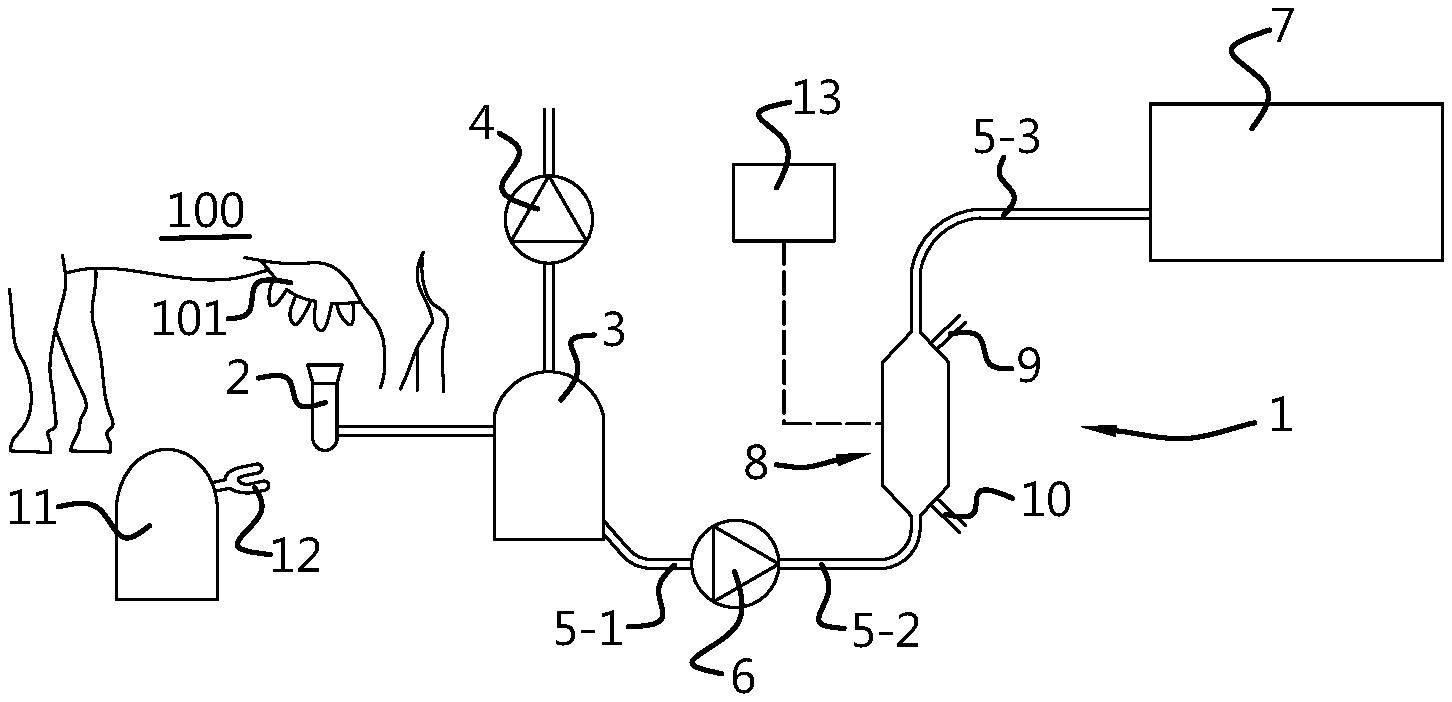

A milking device is provided with milking device, a control unit, a milk line for transporting the milk from the milking device to a milk tank, a milk filter for filtering the milk passing through the milk line, and a cleaning device for the milk filter with cleaning liquid. The milk filter includes a housing surrounding a filter volume and has a milk inlet and a milk outlet, and a filter component in the filter volume. The filter component includes a circumferential plate part with filter holes, and divides the filter volume into a central inner filter volume and an outer filter volume surrounding the latter. The milk filter is configured to be flushed, in use, with the milk to be filtered from the milk inlet to the milk outlet. The cleaning device is configured to clean the milk filter by passing cleaning liquid through the milk filter in a countercurrent direction in consecutive pulses, in such a way that, in each pulse, during a first pulse stage more cleaning liquid is supplied than is discharged, and subsequently, during a second pulse stage, at least as much cleaning liquid flows from the filter volume as is supplied. As a result thereof, an amount of cleaning liquid always collects in the filter volume up to a liquid level, which surrounds at least some of the plurality of holes. The next pulse makes cleaning liquid collide with the liquid level, which improves the cleaning of the filter.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
LELY PATENT N V | 3147 PB MAASSLUIS |
International Classification(s)

- 2021 Application Filing Year
- A01J Class
- 53 Applications Filed
- 21 Patents Issued To-Date
- 39.63 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
FRANCK, Malouk Maria | Maassluis, NL | 3 | 0 |
# of filed Patents : 3 Total Citations : 0 | |||
VAN, EEDEN Bart | Maassluis, NL | 5 | 0 |
# of filed Patents : 5 Total Citations : 0 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- A01J Class
- 0 % this patent is cited more than
- 1 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 11, 2027 |
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 11, 2031 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 11, 2035 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 3.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
