HANDLE ARRANGEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 4, 2024
app pub date -
Jun 28, 2023
filing date -
Jun 29, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

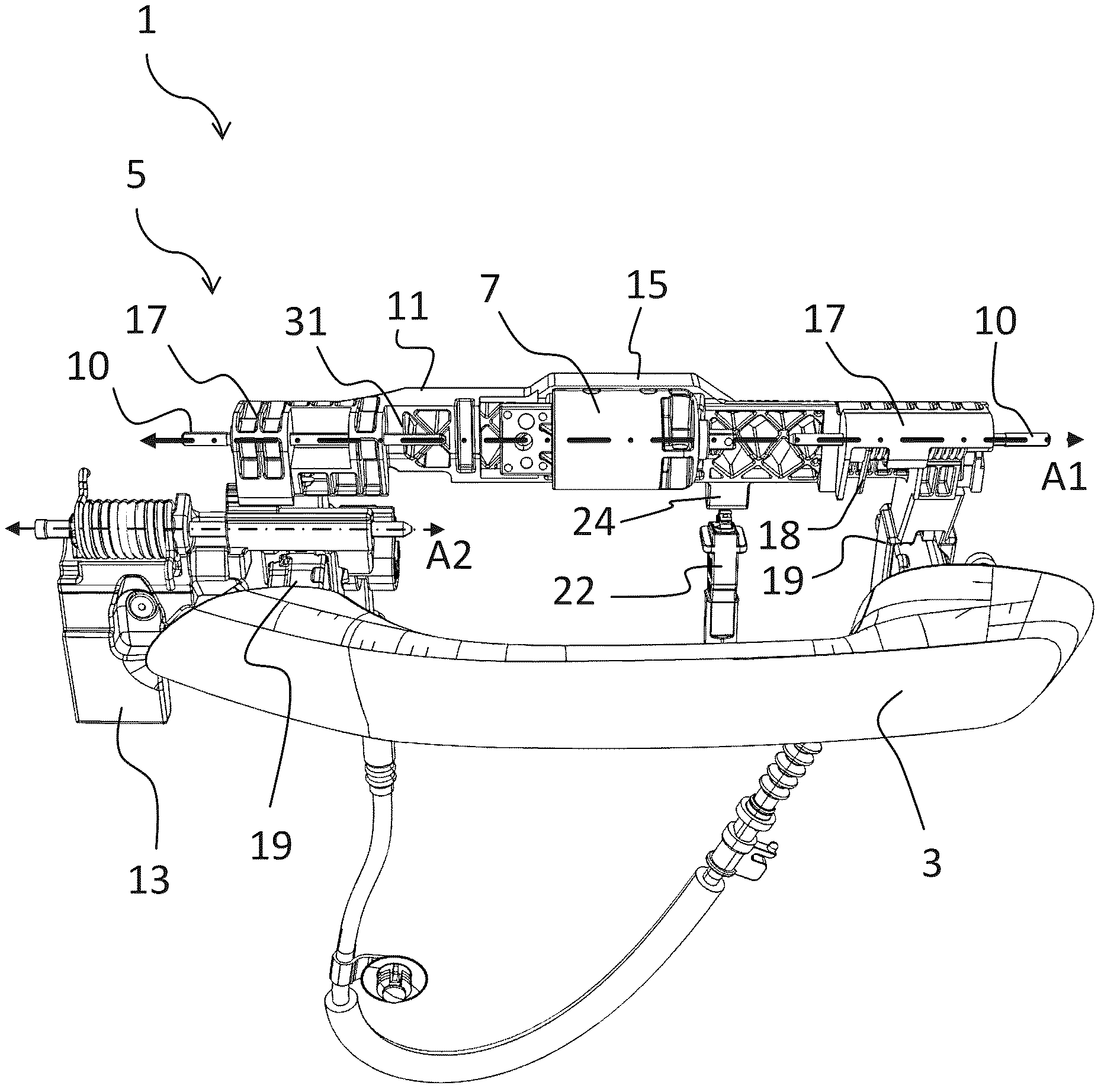

The invention relates to a handle arrangement comprising a handle, a deploying system of the handle pivotally coupled with the handle and comprising a toggle member pivoting about a primary axis A1 and comprising a central body with two opposite ends to which extend one arm respectively, each arm being connected to one extremity of the handle, and a counterweight pivoting about a secondary axis A2 parallel to the primary axis A1, and a declutching system cooperating with the deploying system and having a clutch position and a declutch position, wherein the declutching system cooperates with the central body of the deploying system, and wherein the declutching system, the counterweight and the toggle member pivot about respective axles.
First Claim
Other Claims data not available
