US Patent Application No: 2023/0420,257

Chip with a Silicon Carbide Substrate

---

Abstract

---

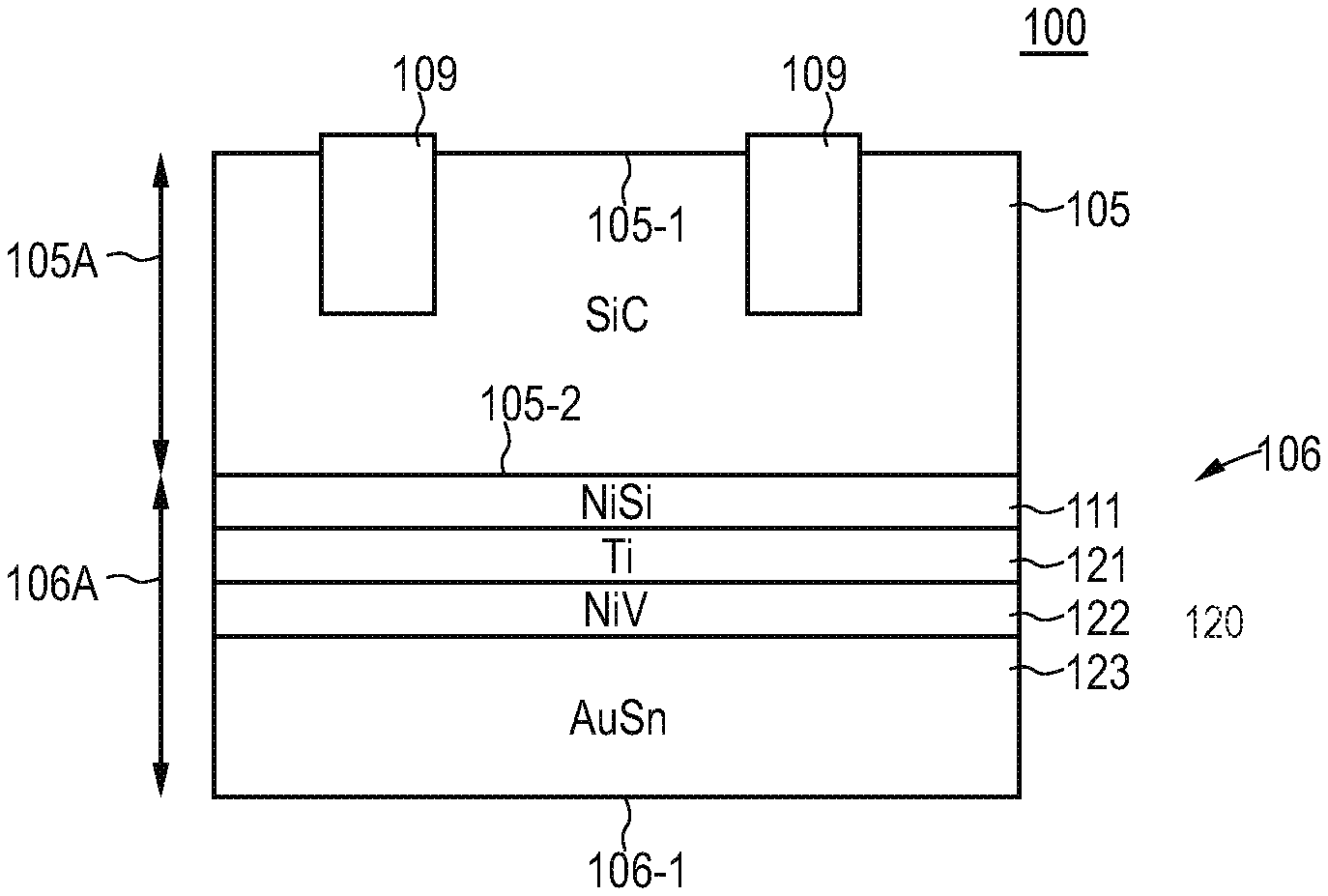

A chip is provided. In an embodiment, the chip includes a silicon carbide substrate, a first sputtered metal layer on the silicon carbide substrate, and at least one second sputtered metal layer on the first sputtered metal layer. The first sputtered metal layer and the at least one second sputtered metal layer form an electrical contact. In another embodiment, the chip includes a silicon carbide substrate, a nickel-silicon layer on the silicon carbide substrate, and a layer sequence including a titanium layer, a nickel-containing layer, and a gold-tin or silver layer on the nickel-silicon layer.

---



---
