ELECTRIC FOLDING DEVICE FOR EXTERIOR REAR-VIEW MIRROR OF VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 28, 2023
app pub date -
Oct 26, 2021
filing date -
Oct 26, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

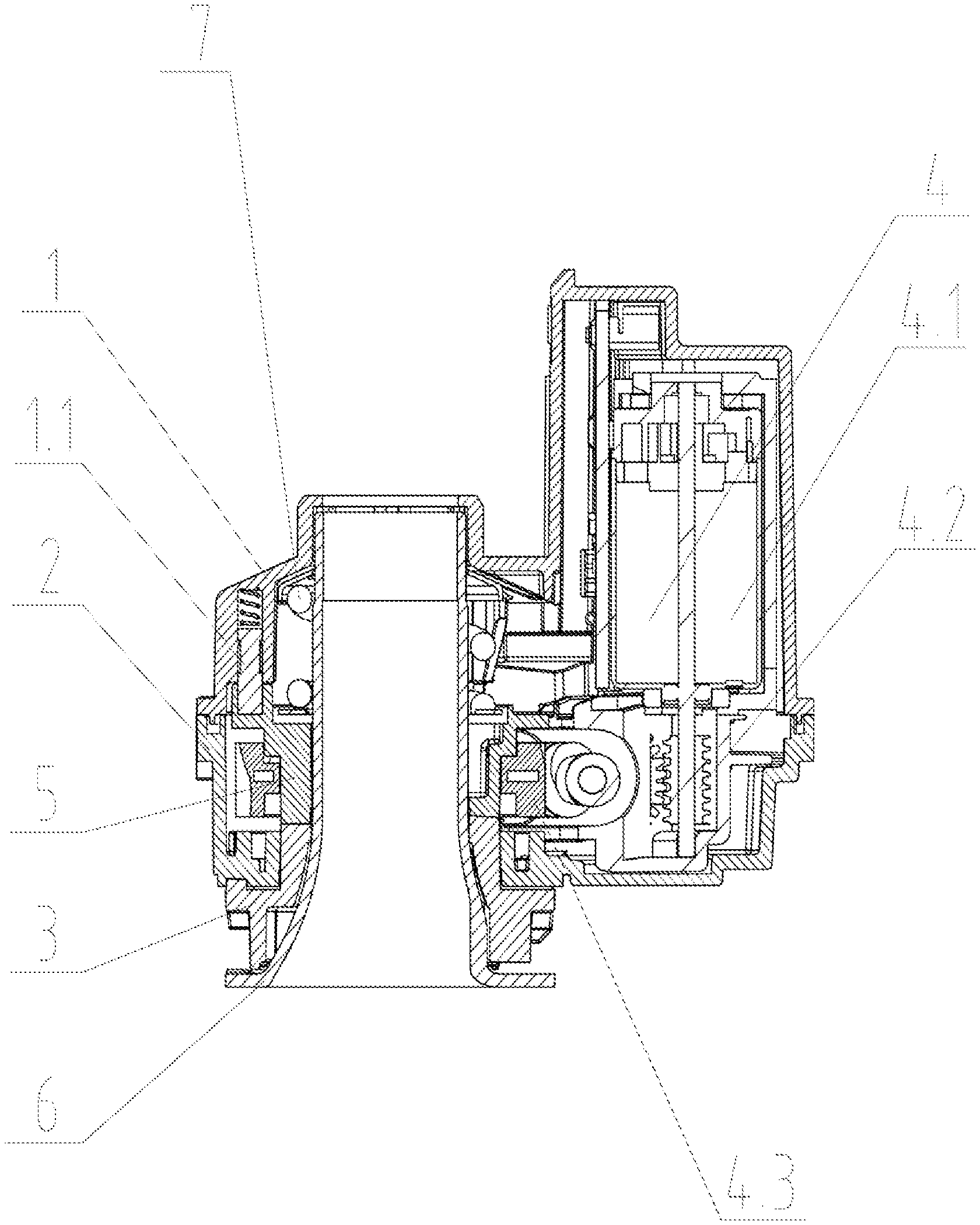

An electric folding device for exterior rear-view mirror of a vehicle is provided which comprises a centralized connection piece, having a mounting portion provided for the drive gear to slide circumferentially; a limiting seat is integrally disposed on an upper part of the mounting portion, a spring is abutted against an upper end of the limiting seat; the drive gear is abutted between the limiting seat and the base. In an initial state, a reserved gap is present between the drive gear and the limiting seat/the base; the electric drive unit drives the base cam assembly to gradually slide relative to the seat cam assembly; the reserved gap is gradually eliminated until the base cam assembly is abutted against the seat cam assembly as the base is lifted up, achieving a smooth lifting function, with low requirements for the bearing capacity of gear, suitable for lightweight development, and cost-effective.
First Claim
Other Claims data not available
