Auxiliary tool for Stamping Stamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 21, 2023
app pub date -
Sep 1, 2023
filing date -
Jul 1, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

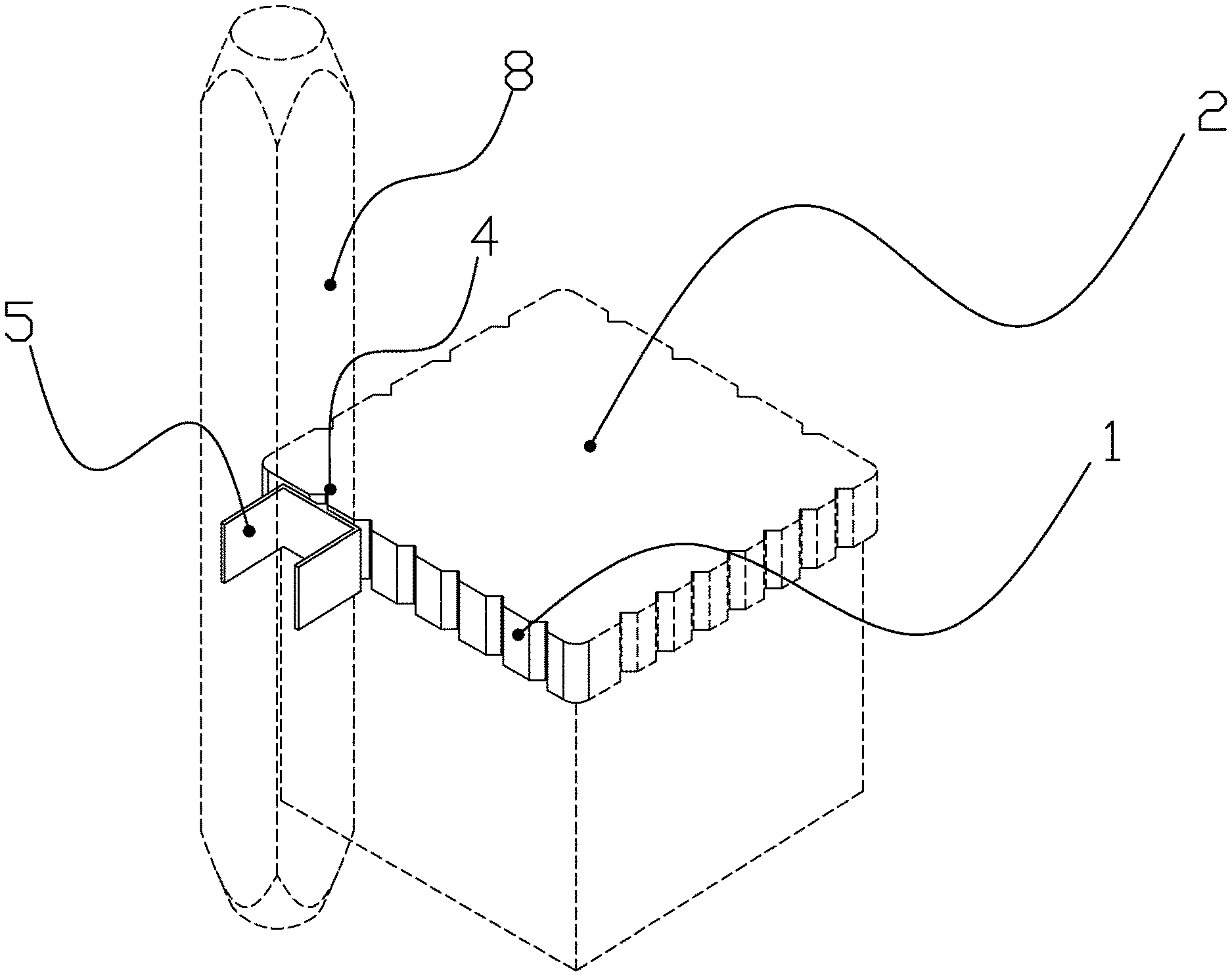

An auxiliary tool includes a first stamping plate, a guiding frame, and a magnetic element. The first stamping plate is detachably attached on a first side wall of a container, and has a plurality of positioning grooves indently and spacedly formed on a first outer surface of the first stamping plate. The guiding frame has an engagement rim detachably engaging with one of the positioning grooves, and a supporting platform shaped and sized to correspond to the stamp. The magnetic element is mounted on the guiding frame to provide a magnetic attractive force for magnetically attracting the stamp so that a user is able to impart an impact on the stamp for forming a printed text on a workpiece.
First Claim
Other Claims data not available
