A MICROFLUIDIC SENSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 21, 2023
app pub date -
Aug 27, 2021
filing date -
Aug 28, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

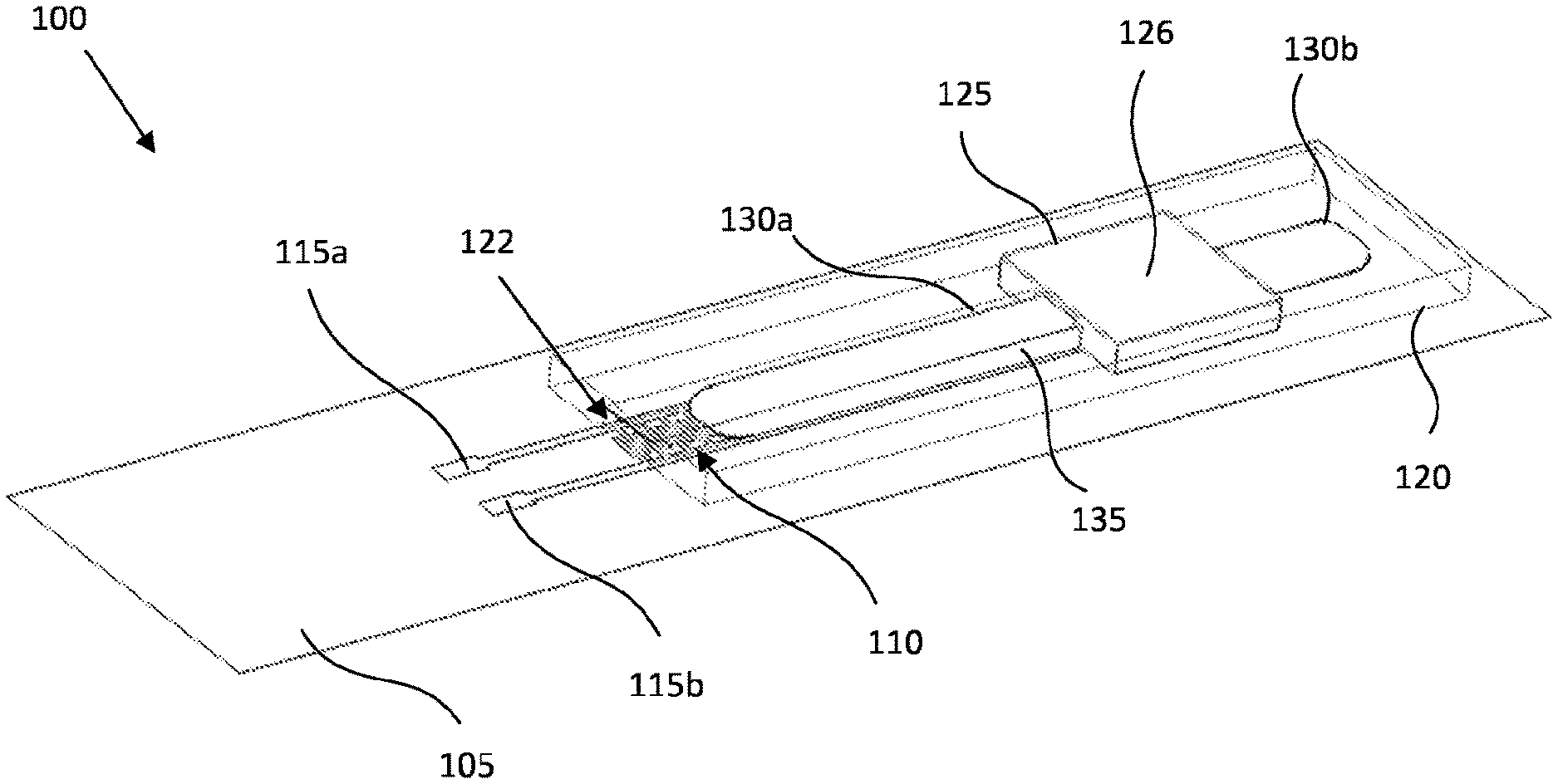

A microfluidic sensor comprising: a first substrate; a second substrate; a cavity formed between the first substrate and the second substrate, the cavity comprising a reservoir portion and a channel portion extending from the reservoir portion; a capacitive element disposed between the first substrate and the second substrate, the capacitive element being at least partially disposed in the channel portion of the cavity; and a dielectric sensing liquid provided in the reservoir portion. Upon application of a force to the first substrate adjacent the reservoir portion, the reservoir portion is configured to deform and displace the sensing liquid along the channel portion, so as to change the capacitance of the capacitive element within the channel portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61F Class
- 0 % this patent is cited more than
- 2 Age
