A MECHANISM FOR REMOVABLY ASSEMBLING PLURALITY OFCOMPONENTS IN EVAPORATOR OF AN ICE MAKING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 14, 2023
app pub date -
Jun 3, 2021
filing date -
Oct 23, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

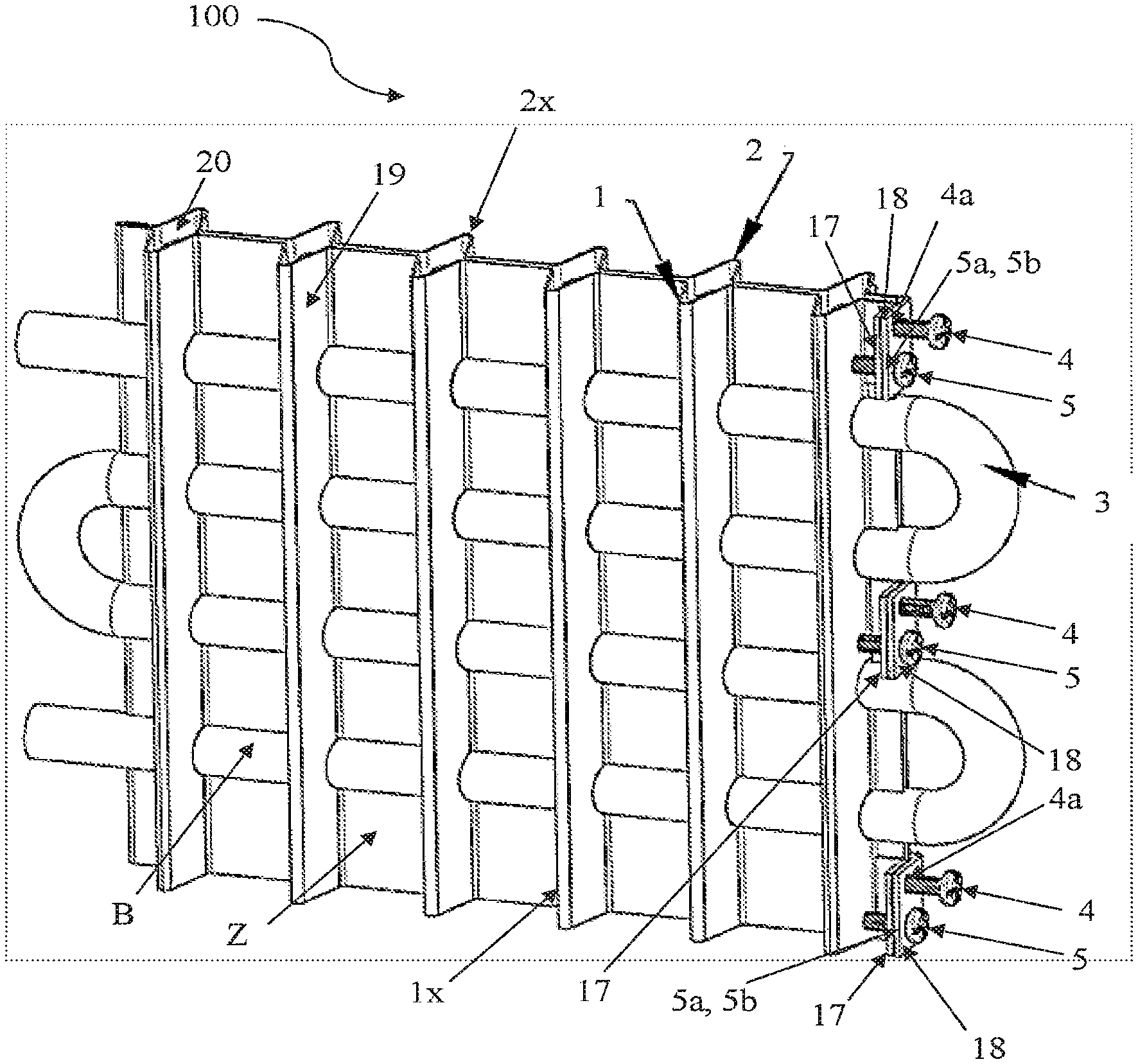

An evaporator assembly for an ice making machine is disclosed. The evaporator assembly includes a first metal plate and a second metal plate accommodating a refrigerant tube. The first and second metal plates are defined with a plurality of projections (1x and 2x) extending from a first major surface. The plurality of projections (1x and 2x) defines a slot. The slots defined in the second major surface of first and second metal plates comprise a first connector and a second connector, respectively. At least one of the first metal plate and the second metal plate is movable relative to the other such that the first connector and second connector engage with each other secure the first metal plate and the second metal palate.
First Claim
Other Claims data not available
