VEHICLE FRAME SYSTEM FOR A VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 14, 2023
app pub date -
Aug 25, 2023
filing date -
May 6, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

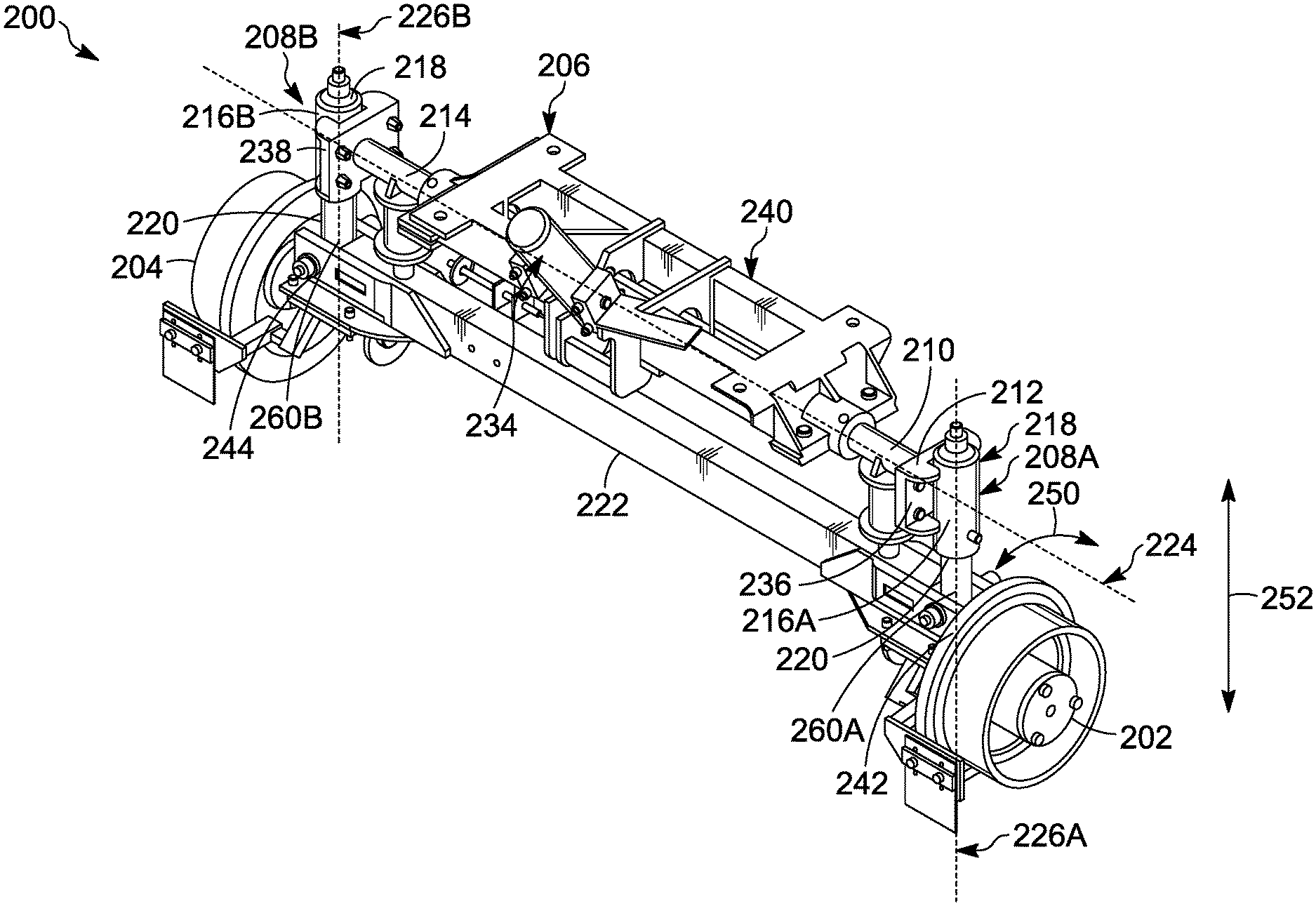

A vehicle frame assembly includes a frame bar extending between first and second ends along a first axis. The first end is coupled with a first guide assembly, and the second end of the frame bar is coupled with a second guide assembly. First and second housings are coupled with a frame of a vehicle system. A first actuator system extends between the first housing and the frame bar, and a second actuator system is extends between the second housing and the frame bar. The first and second actuator systems control rotational movement of the frame bar between first and second directions of rotation. Rotating the frame bar in the first direction of rotation moves an axle away from a route, and rotating the frame bar in the second direction of rotation moves the axle toward the route.
First Claim
Other Claims data not available
