Illumination Device for Motor Vehicle Headlight or Motor Vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 7, 2023
app pub date -
Jun 5, 2023
filing date -
Jun 7, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

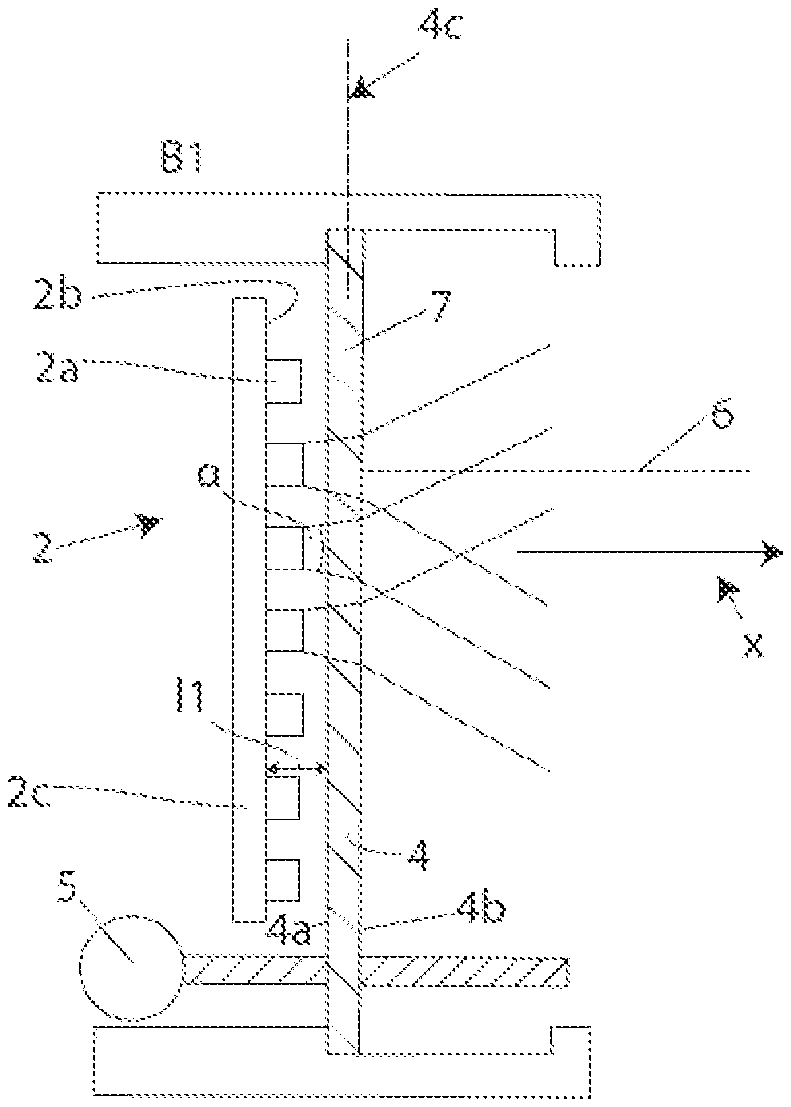

Illumination device, for a motor vehicle headlight, has an illuminant and an optical device associated therewith. The optical device has adjustment means to adjust operating states (OS) of the optical device. In a first OS, the optical device forms a first light function with light of the illuminant. In a second OS, the optical device forms a second light function different from the first light function with light of the illuminant. The illuminant includes light sources spaced apart from one another, and the optical device has scattering elements to scatter the light of the light sources. The adjustment means is configured to adjust the optical device such that in the first OS, the optical device has a first normal distance to the light sources and, in the second OS, has a second normal distance to the light sources, wherein the second normal distance is greater than the first normal distance.
First Claim
Other Claims data not available
Family
