THERMAL POWER STATION AND METHOD FOR GENERATING ELECTRIC POWER IN A THERMAL POWER STATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 9, 2023
app pub date -
Dec 22, 2020
filing date -
Jan 8, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

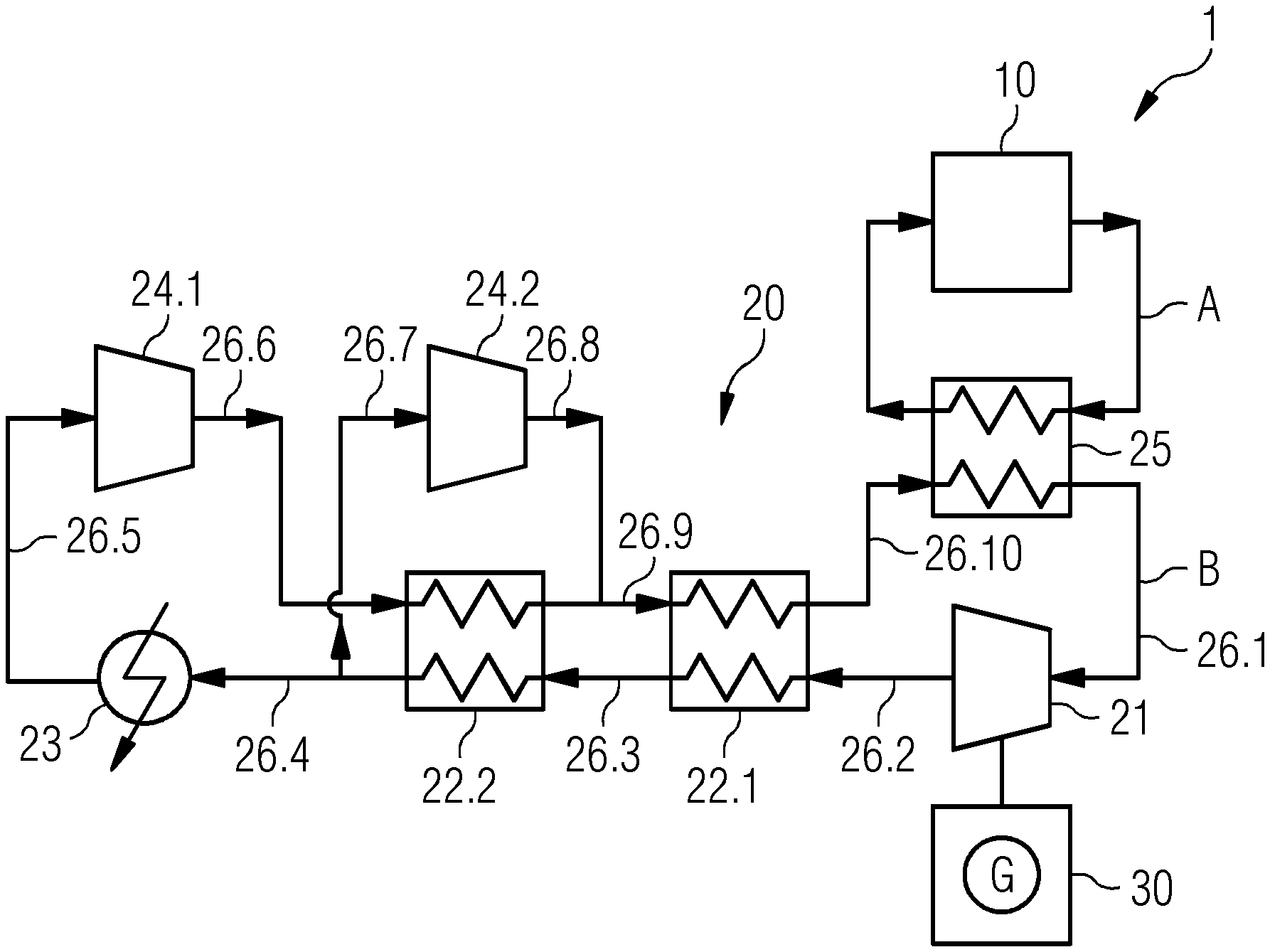

A thermal power station and method for generating includes (a) at least one thermal energy storage having a housing, a storage chamber and a fluid inlet port fluidically connected to the storage chamber and a fluid outlet port connected to the storage chamber, and (b) a Brayton cycle heat engine including gas turbine, a cooler and a compressor connected with each other by a closed cycle containing a second working fluid, (c) the Brayton cycle heat engine further includes a control unit arranged for operating the Brayton cycle heat engine according to a Brayton cycle, (d) the gas turbine is thermally coupled to the at least one thermal energy storage by a first heat exchanger and a first working fluid, the first working fluid being different, and (e) the gas turbine is connected to a generator for producing electrical power by the thermal energy from the thermal energy storage.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F28D Class
- 0 % this patent is cited more than
- 2 Age
