A FORMING MOULD SYSTEM AND A METHOD FOR FORMING A CELLULOSE PRODUCT IN A FORMING MOULD SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 9, 2023
app pub date -
Feb 2, 2021
filing date -
Feb 2, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

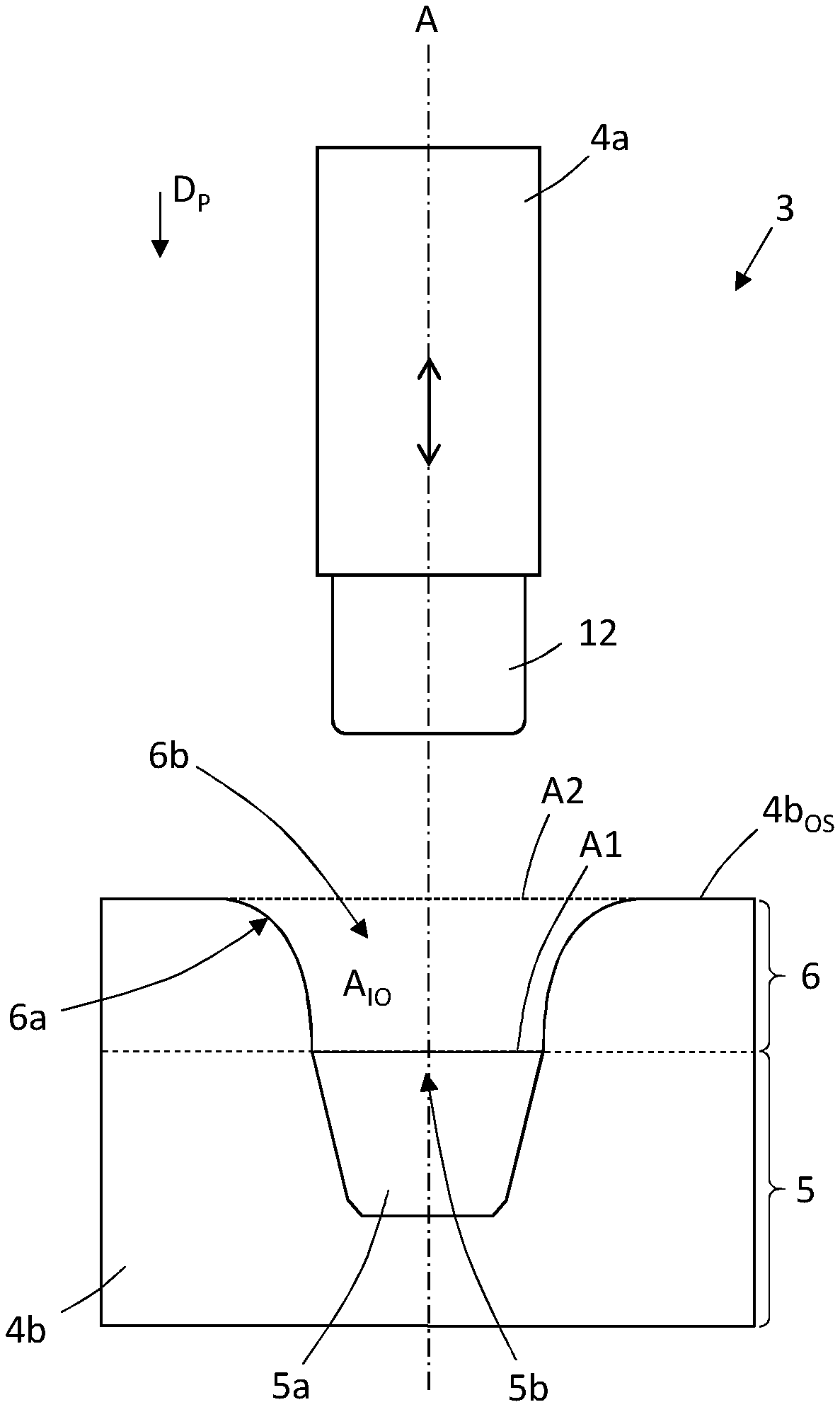

A forming mould system (3) for forming a cellulose product (1) from an air-formed cellulose blank structure (2), where the forming mould system (3) comprises a first mould part (4a) and a second mould part (4b). The first mould part (4a) and the second mould part (4b) are configured for moving in relation to each other in a pressing direction (DP). The second mould part (4b) comprises a forming cavity section (5) and an inlet section (6), where the inlet section (6) is arranged in connection to the forming cavity section (5) and configured for facilitating displacement of the cellulose blank structure (2) into a forming cavity (5a) of the forming cavity section (5). The inlet section (6) comprises a transition surface (6a) defining an inlet opening (6b), and the inlet opening (6b) is having a tapered configuration towards the forming cavity (5a). The disclosure further relates to a method for forming a cellulose product (1) from an air-formed cellulose blank structure (2) in a forming mould system (3).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 2 Age
