FRONT SUSPENSION ASSEMBLY FOR AN OFF-ROAD VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 2, 2023
app pub date -
Sep 30, 2021
filing date -
Sep 30, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

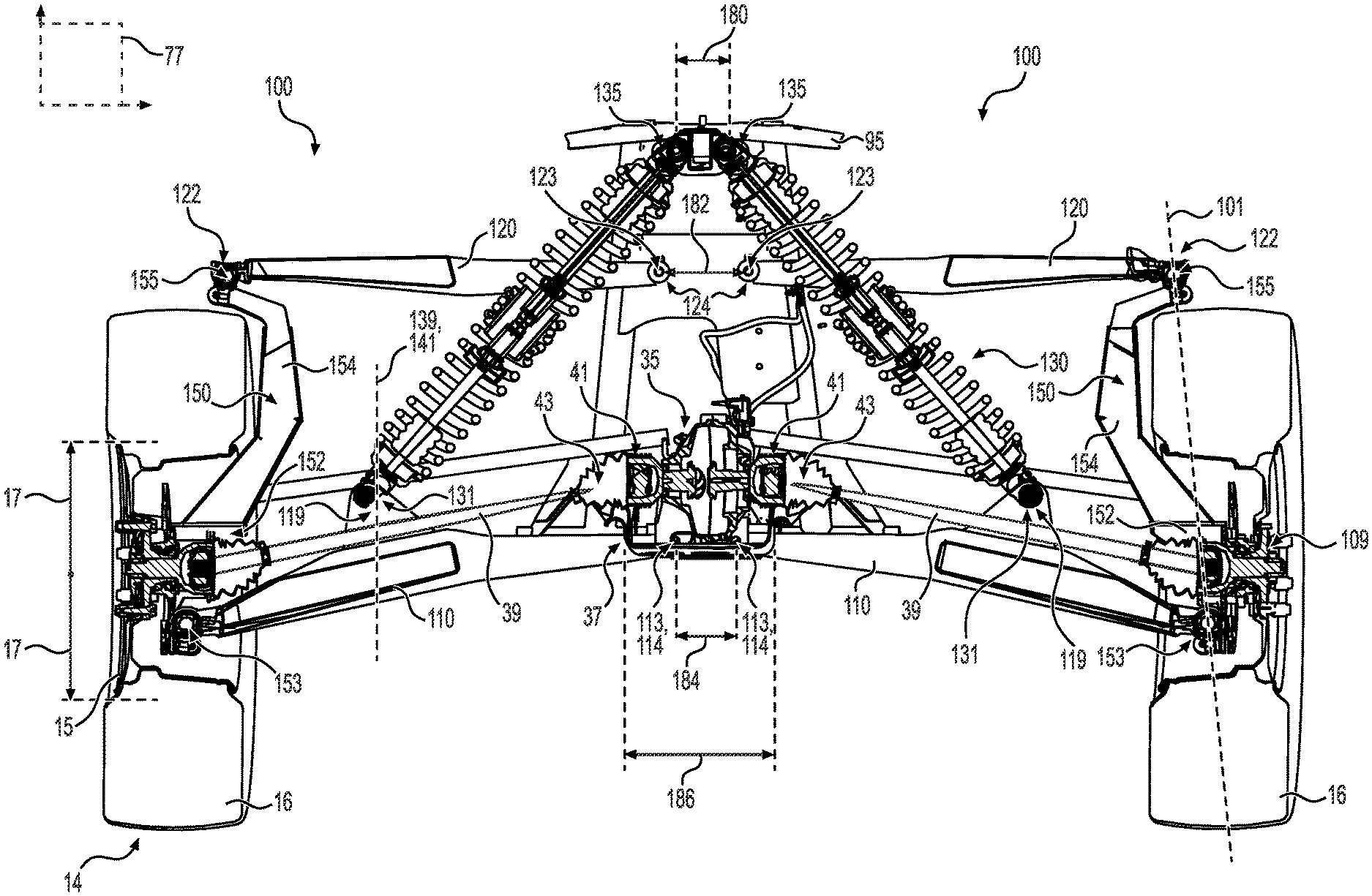

A vehicle including a frame; a front left suspension assembly with a front left wheel; a front right suspension assembly with a front right wheel; a front gear train; a motor; shafts connected between the front wheels and the front gear train. Each front suspension assembly including a knuckle including: a first portion connected to a wheel hub and including a first ball joint, and a second portion extending upward from the first portion and including a second ball joint; a lower A-arm connected to the first ball joint; an upper A-arm connected to the second ball joint; the second ball joint being distanced from the wheel axis by a distance greater than the inner rim radius; and a shock assembly connected to the lower A-arm and the frame, the shafts passing below the ball joint of the shock absorber assembly which is vertically higher than the shaft.
First Claim
Other Claims data not available
