ASSEMBLED CONCRETE SHEAR WALL JOINTS AND METHOD OF ASSEMBLY THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 26, 2023
app pub date -
Feb 15, 2023
filing date -
Apr 21, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

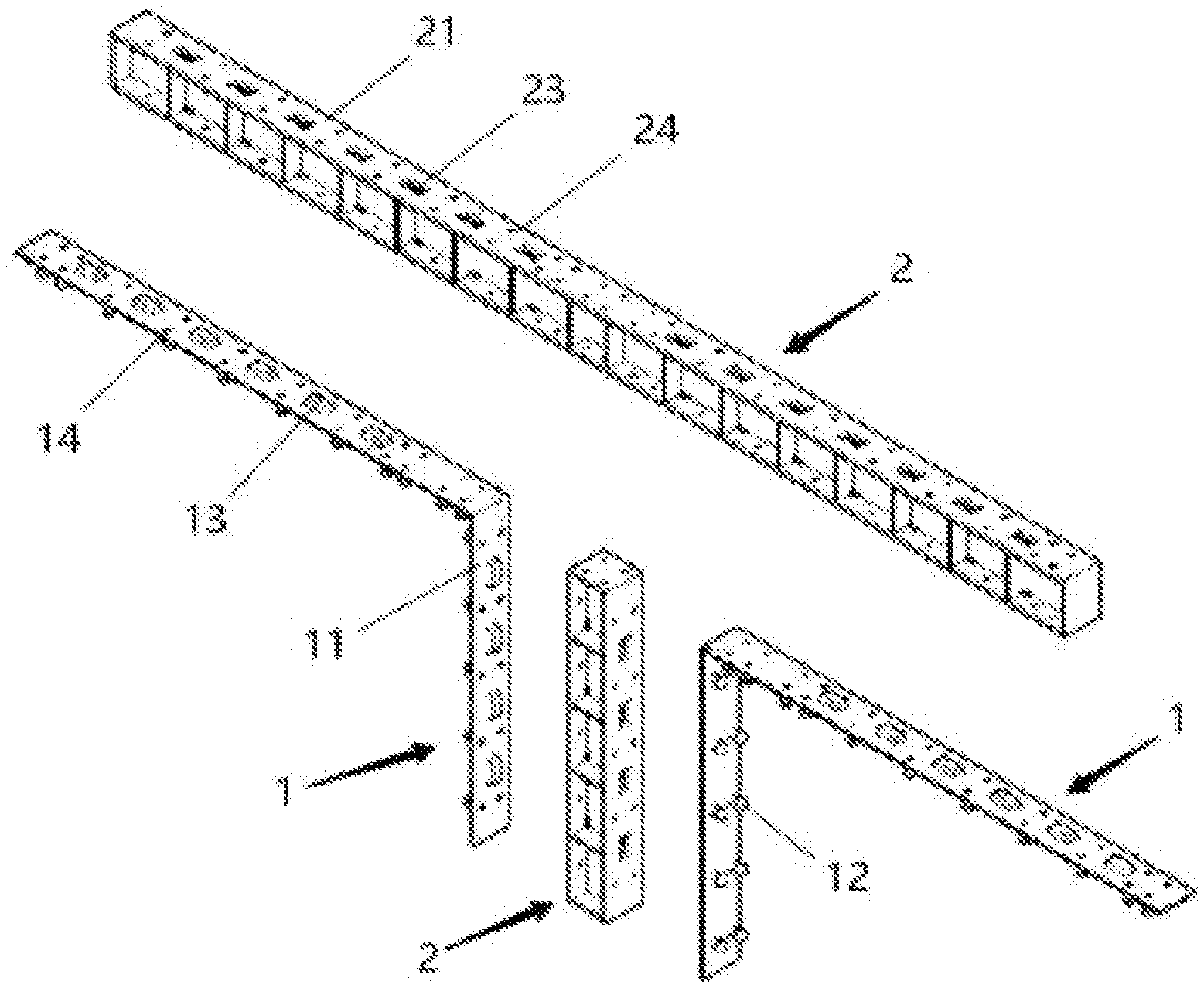

A shear wall connector comprising a pre-built member and a connector, the pre-built member comprising a side plate, a peg, and a shear key, the side plate being provided with a first through hole, the peg and the shear key being provided on the inner and outer sides of the side plate respectively, the peg being provided with a threaded hole at the end connected to the side plate and having the threaded hole aligned with the first through hole wherein the connection member comprises an H-beam, the flange plate of the H-beam being provided with a second through-hole and a shear key adaptor hole matching the first through-hole and the shear key in the side plate. The pre-built elements are pre-built in the concrete wall surface and are assembled by means of the connectors. During installation, the shear key is inserted into the shear key adaptor hole.
First Claim
Other Claims data not available
