EXTERNAL REAR-VIEW MIRROR FOR VEHICLES AND A SET OF REAR-VIEW MIRRORS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 26, 2023
app pub date -
Apr 18, 2023
filing date -
Apr 26, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

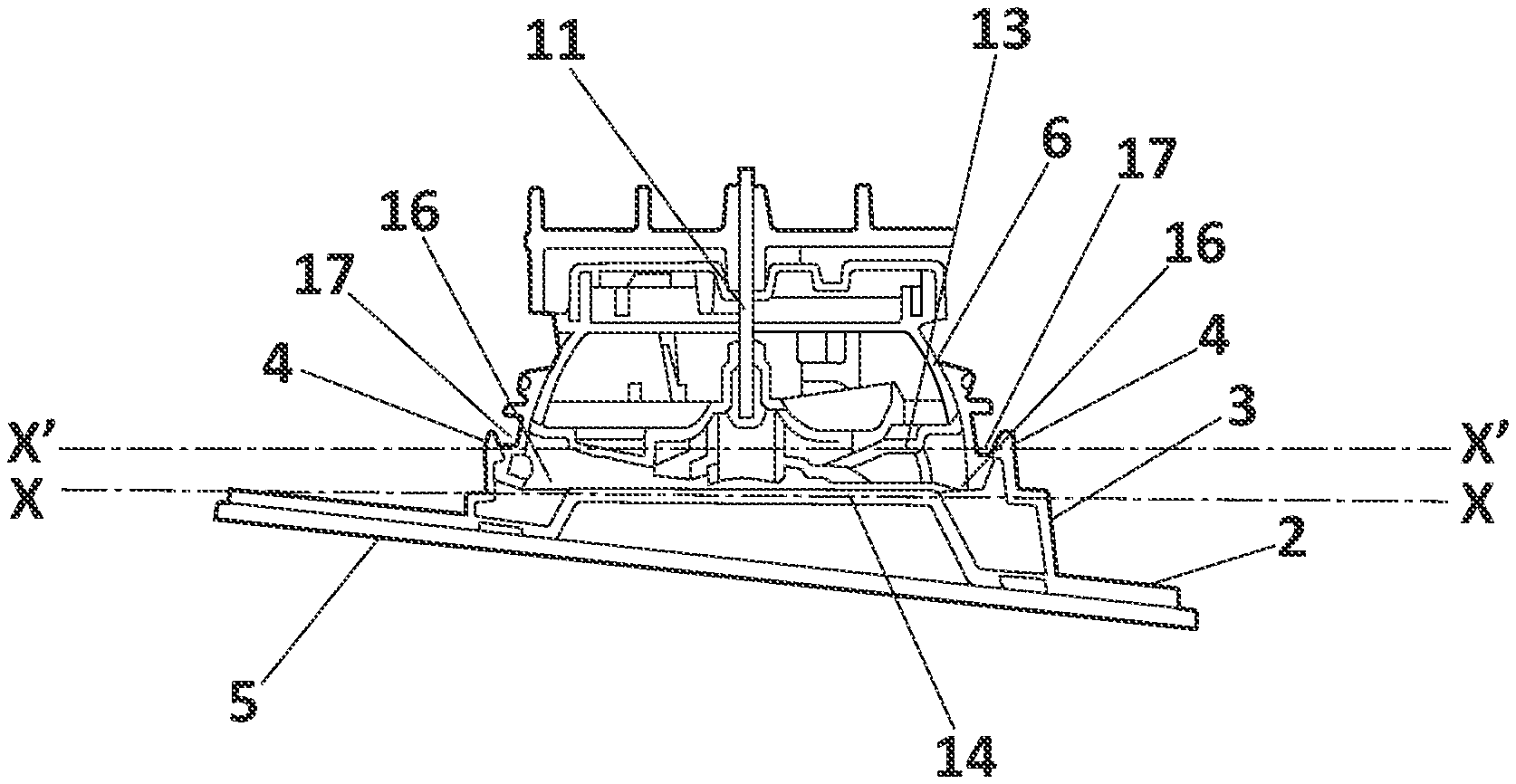

An external rear-view mirror assembly for vehicles includes a mirror housing with an opening, a frame assembled at the opening of the mirror housing, a mirror pane, an actuator accommodated inside the mirror housing and adapted for adjusting the position of the mirror pane relative the mirror housing, such that the mirror pane is inclined with respect to a coupling surface of the actuator, or wherein the mirror pane is inclined with respect to a second contact surface of the actuator, or inclined with respect to an orthogonal direction to a fixing direction of fixing means of the actuator. The external rear-view mirror assembly may define a set of external rear-view mirrors that features a symmetrical configuration both, from an aerodynamic and from a visual appearance point of view, and that it is optimized optically to provide individualized fields of view in the driver and passenger-side rear-view mirrors.
First Claim
Other Claims data not available
