PRESS MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 5, 2023
app pub date -
Mar 17, 2023
filing date -
Mar 17, 2023
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

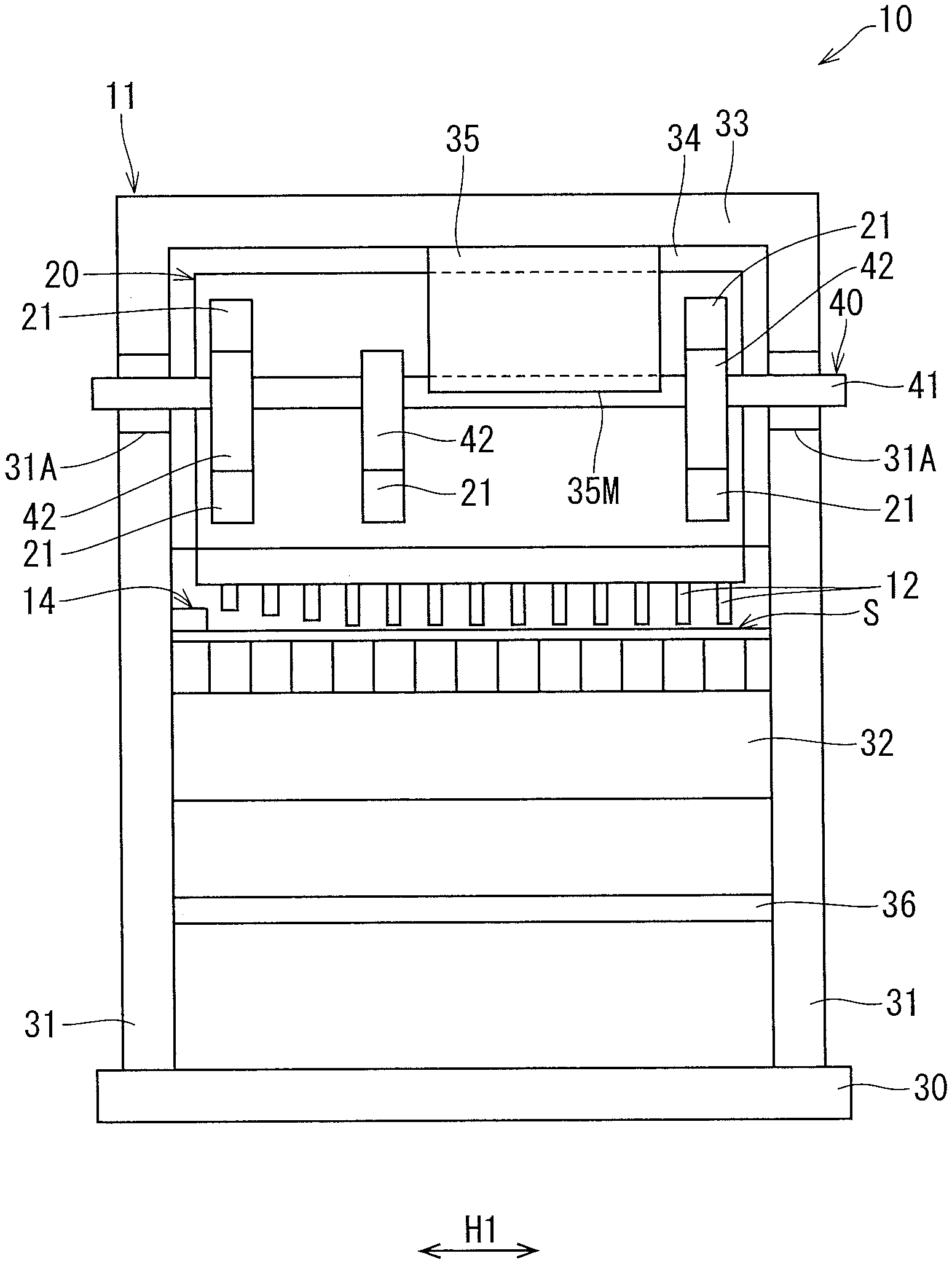

A press machine includes: a ram, a shaft, and three or more ram driving cams, for the one ram, configured to push down the ram toward a bottom dead center, the plurality of ram driving cams being integrally rotatable with the common shaft. Both end portions of the shaft are rotatably supported by a pair of rotation support portions fitted to the both end portions between which all of the plurality of ram driving cams are disposed, and an intermediate portion of the shaft disposed between the ram driving cams is rotatably supported by a support groove opened downward. The plurality of ram driving cams includes at least two lifting and lowering cams configured to apply both a pushing down force and a pushing up force to the ram, and at least one lowering cam configured to apply only the pushing down force to the ram.
First Claim
Other Claims data not available
