DRAINAGE ASSEMBLY HAVING AN END CAP AND RAMP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 17, 2023
app pub date -
Feb 10, 2023
filing date -
Feb 11, 2022
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

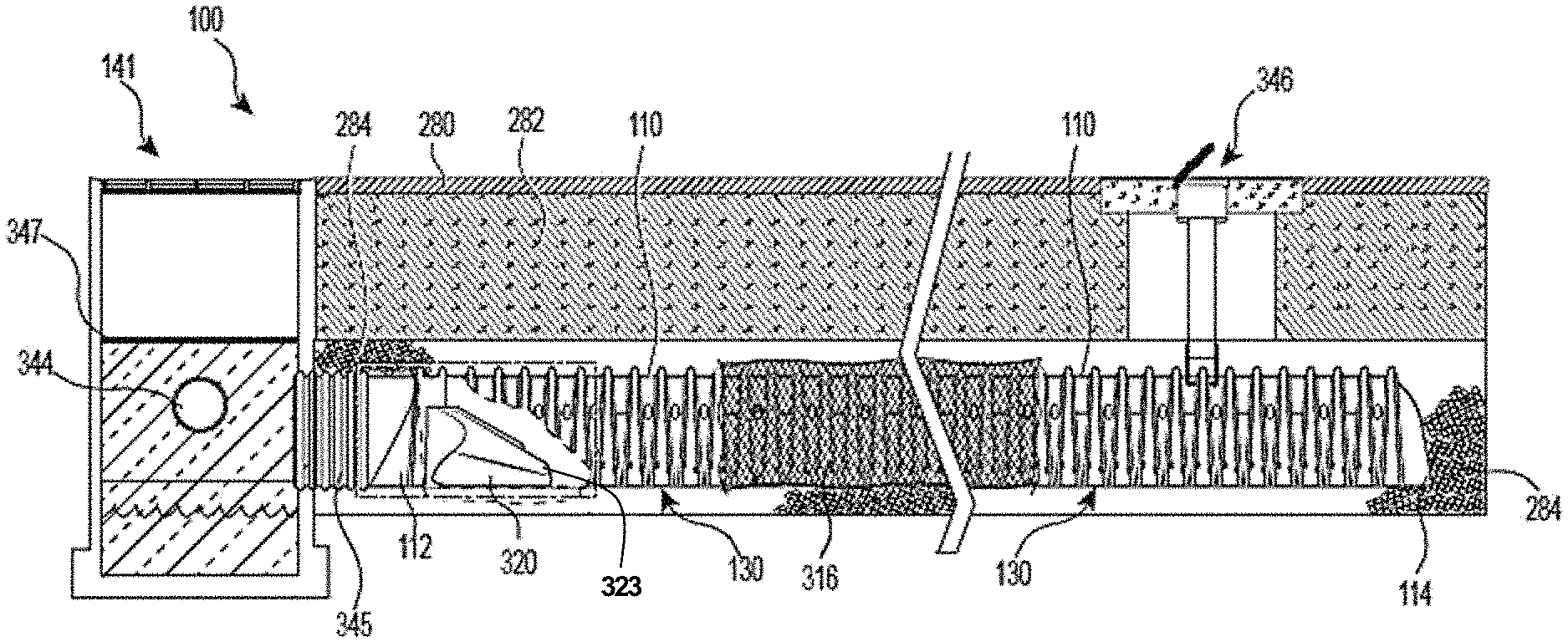

Stormwater management systems, apparatus, and methods for containing and filtering runoff may be provided. In one implementation, a stormwater chamber may be provided. The stormwater chamber may be configured for use with an endcap for connecting a pipe to the stormwater chamber, and the stormwater chamber may include a first end with a scalloped edge portion. The end cap may include a sleeve with an interior projecting edge, an outward projecting edge, a bore shaped to receive a pipe, a first cutout portion at the upper half of the outward projecting edge of the sleeve, and a second cutout at the bottom half of the interior projecting edge of the sleeve. The stormwater chamber may also include a flared end ramp with an inlet end, an outlet end, and a protrusion on the outside of the inlet end that abuts the flared end ramp with the end cap.
First Claim
Other Claims data not available
