IMPROVED CARBON FIBRE WHEEL EXTERNAL FACE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 27, 2023
app pub date -
May 31, 2021
filing date -
Jun 4, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

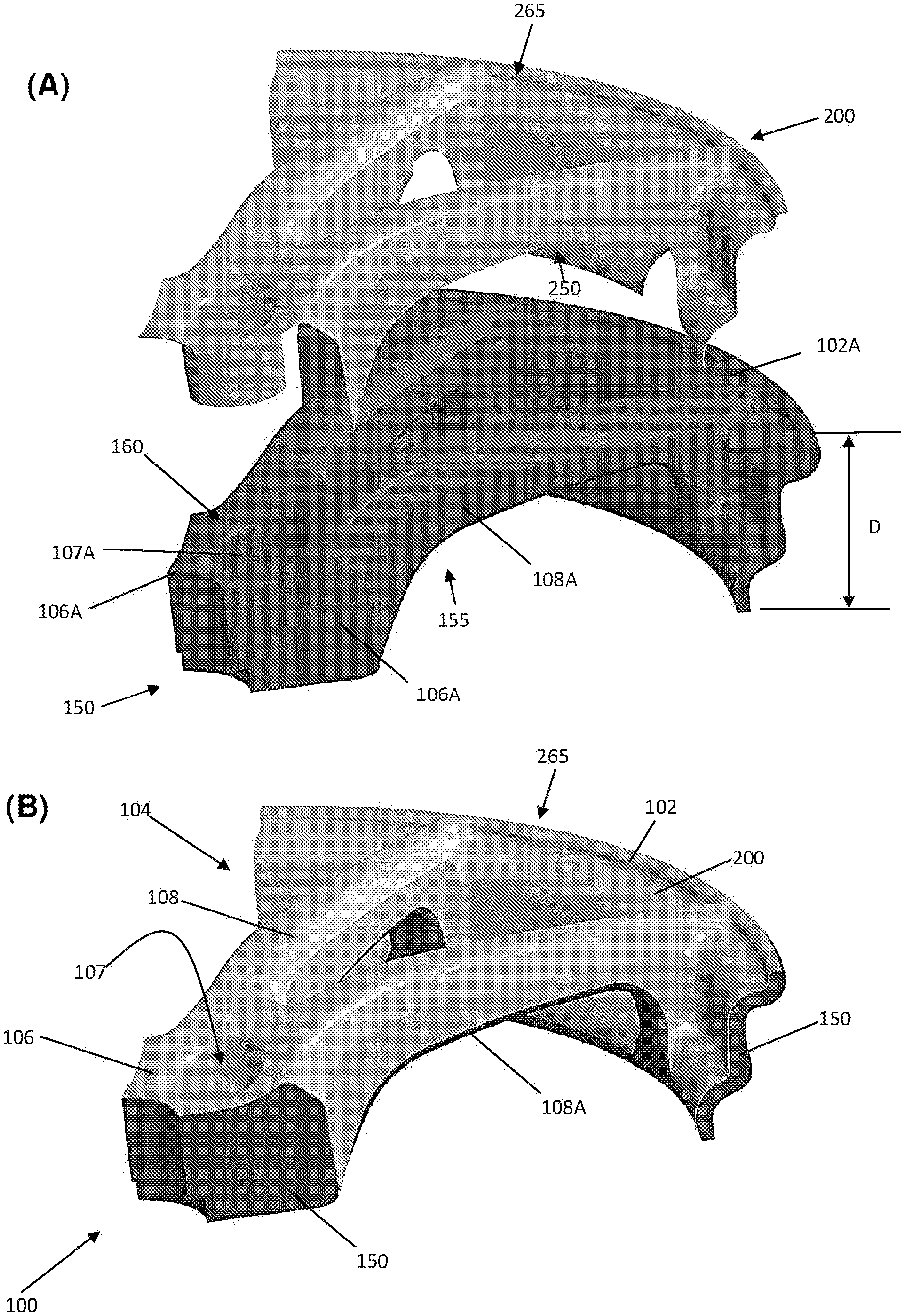

A carbon fibre vehicle wheel including a wheel body having a rim portion and a face portion, the rim portion having an annulus structure configured to receive and seat a tyre. The face portion includes a hub configured to fix the wheel to the vehicle. A connection structure extends between and interconnects the hub and the rim. The wheel body has an inner side configured to face a wheel mount of the vehicle, and an outer side configured to face outwardly when connected to the wheel mount. The wheel body embodies a first carbon fibre composite composition including a carbon fibre layup infused with a first resin, and a fascia layer attached to at least a portion of the face portion of the outer side of the wheel body. The fascia layer embodies a second fibre composite composition including a selected fibre layup infused with a second resin.
First Claim
Other Claims data not available
