LADDER STRUCTURE FOR FRAME BED
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 29, 2023
app pub date -
Apr 18, 2022
filing date -
Dec 23, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

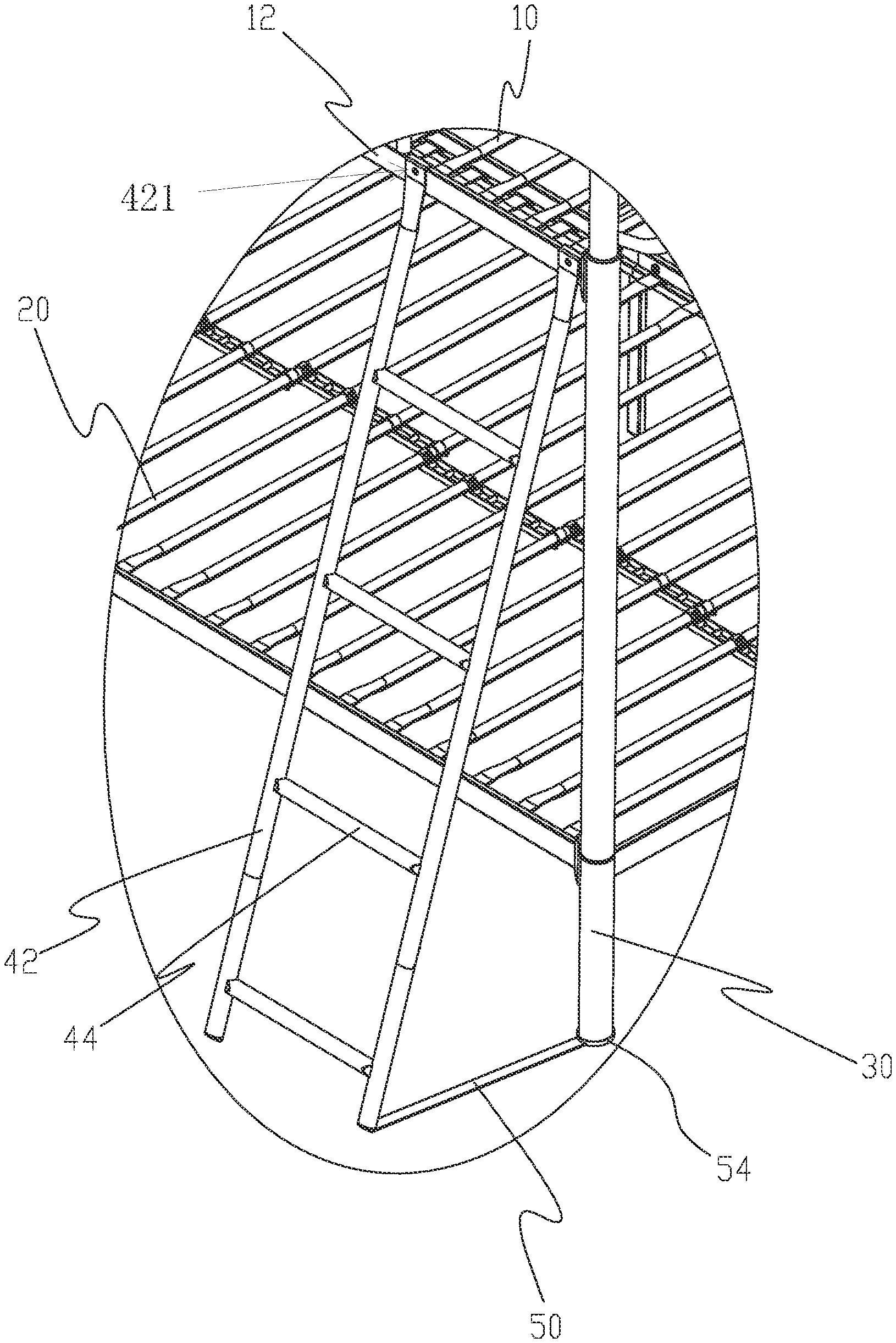

A ladder structure for a frame bed comprises a ladder and a connecting member. The ladder comprises two side bars symmetrically located on a left side and a right side of the ladder and a plurality of transverse step bars connected to the two side bars and spaced apart from one another along a length direction of the side bars. An upper end of each of the two side bars of the ladder is connected to a side of an upper bunk frame. The ladder is disposed obliquely. Lower ends of the two side bars of the ladder are supported on the ground. A first end of the connecting member is connected to at least one of the two side bars of the ladder, and a second end of the connecting member is connected to a column of the plurality of columns which is most adjacent to the ladder.
First Claim
Other Claims data not available
