FULLDOME DISPLAY FRAMEWORK WITH MOVABLE ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 15, 2023
app pub date -
Nov 10, 2022
filing date -
Dec 15, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

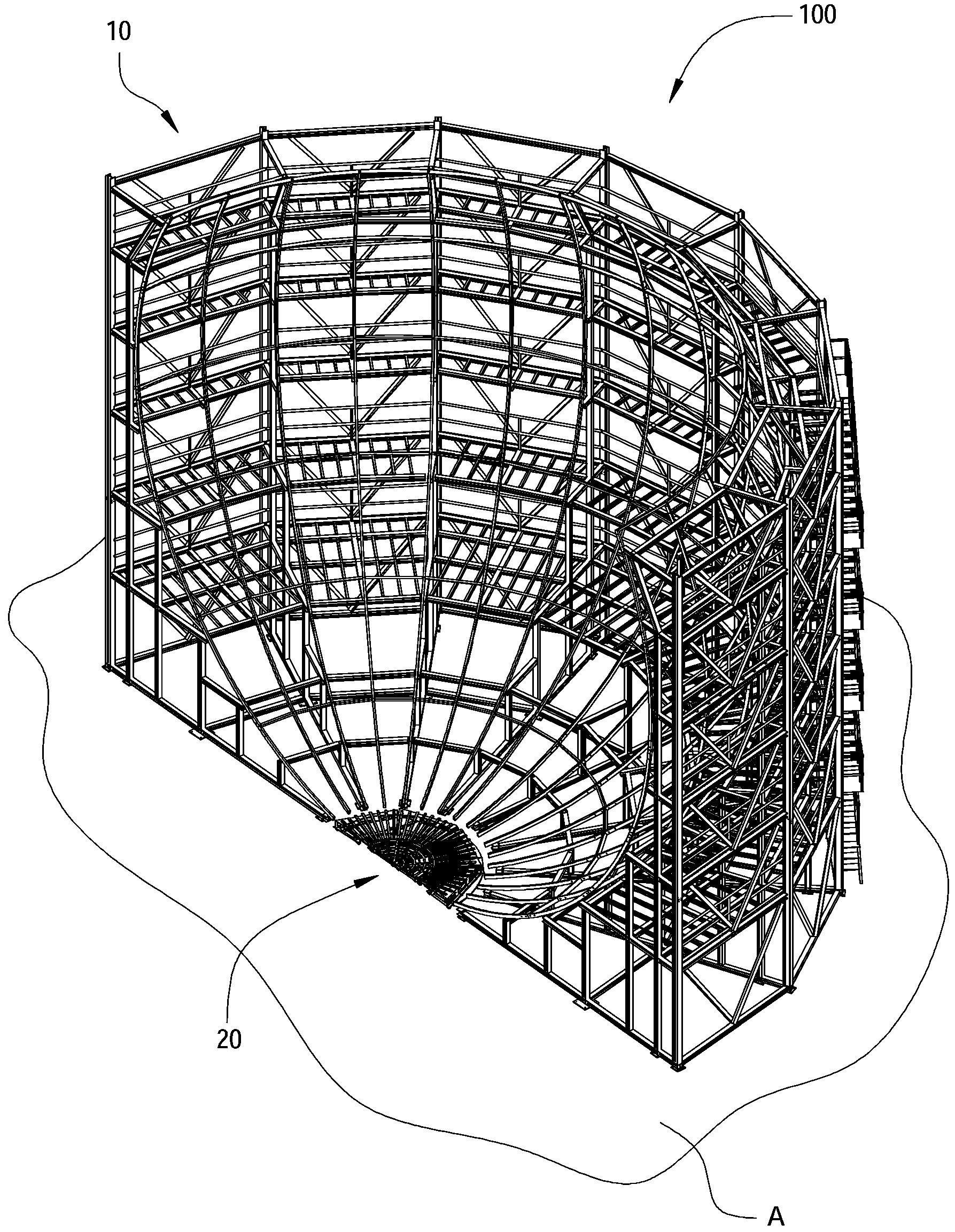

A fulldome display framework with a movable assembly adapted to dispose a plurality of display screens or projection screens to constitute a fulldome display includes a fixed frame engaged with a base surface and a movable frame disposed on the base surface and being movable relative to the fixed frame between an assembling position and a disassembling position along a predetermined route. The fulldome display is constituted when the movable frame is located at the assembling position to match with the fixed frame. In this way, after an LED fulldome display structure is installed on the present invention for example, the movable frame could be pulled out relative to the fixed frame along the predetermined route when a circuit board of a part of the fulldome display requires to be repaired, providing a certain working area for a repair worker to carry out repair and maintenance.
