VIADUCT STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 1, 2023
app pub date -
Jan 11, 2023
filing date -
Jul 20, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

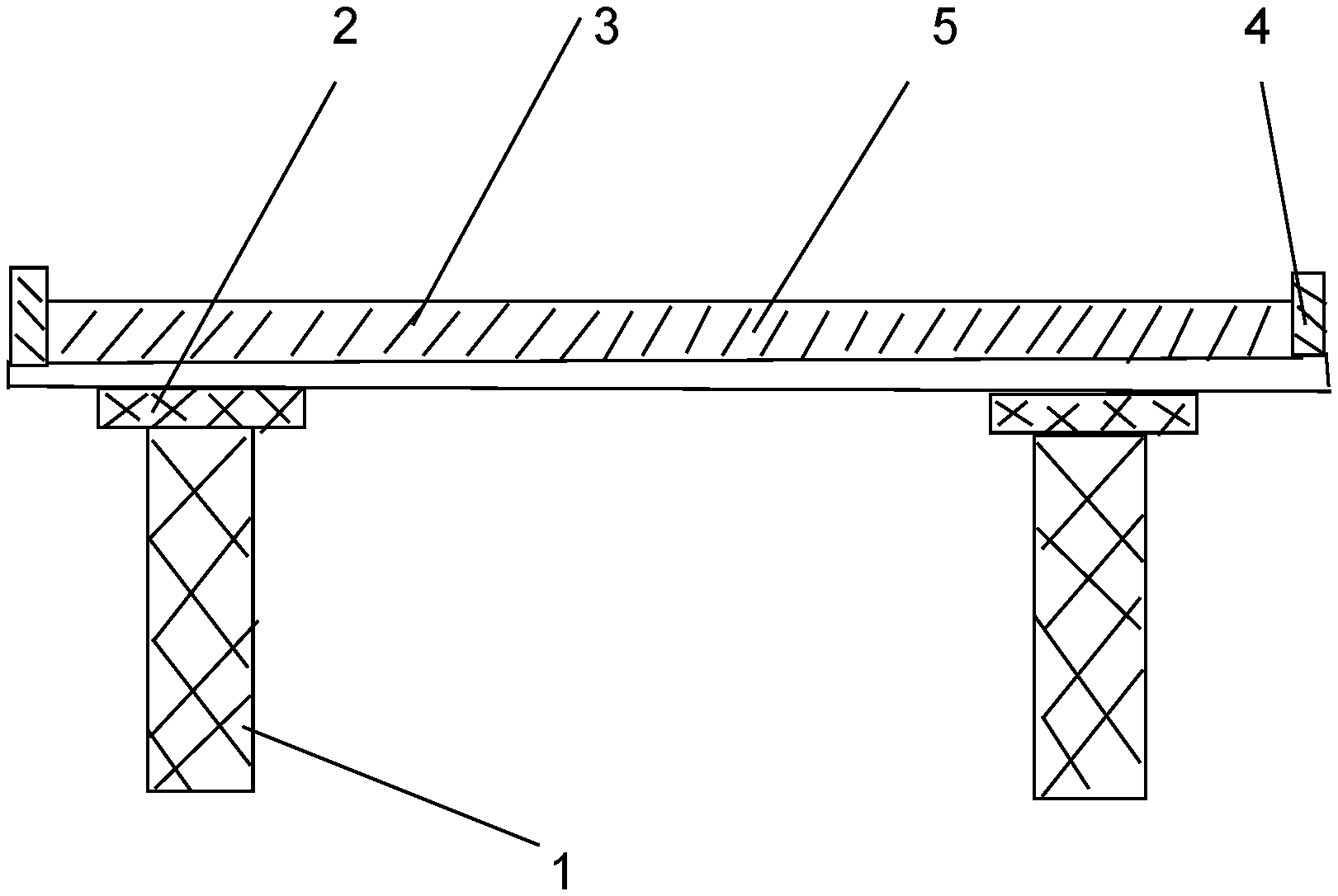

Provided is a viaduct structure. The viaduct structure consists of steel bridge columns, steel plate girders, a bridge deck bottom steel plate, bridge deck side steel plates and cement-gravel concrete, where the steel bridge columns, the steel plate girders and the bridge deck bottom steel plate are welded to one another to form the ceiling type steel architecture, the bridge deck side steel plates are welded to the bridge deck bottom steel plate, and the cement-gravel concrete is poured in a groove-like structure formed by the bridge deck side steel plates and the bridge deck bottom steel plate. The viaduct structure has the advantages of a firm structure, a thin bridge deck, the thin steel plate girders, a low height of the bridge deck, no plywoods required for pouring, convenient construction, low waste, a low material consumption, a low construction cost, a short construction period, etc.
First Claim
Other Claims data not available
