HIGH-PRESSURE TANK, METHOD FOR MANUFACTURING HIGH-PRESSURE TANK, AND METHOD FOR MANUFACTURING FIBER-REINFORCED RESIN LAYER FOR HIGH-PRESSURE TANK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 18, 2023
app pub date -
Jan 15, 2023
filing date -
Jan 15, 2023
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

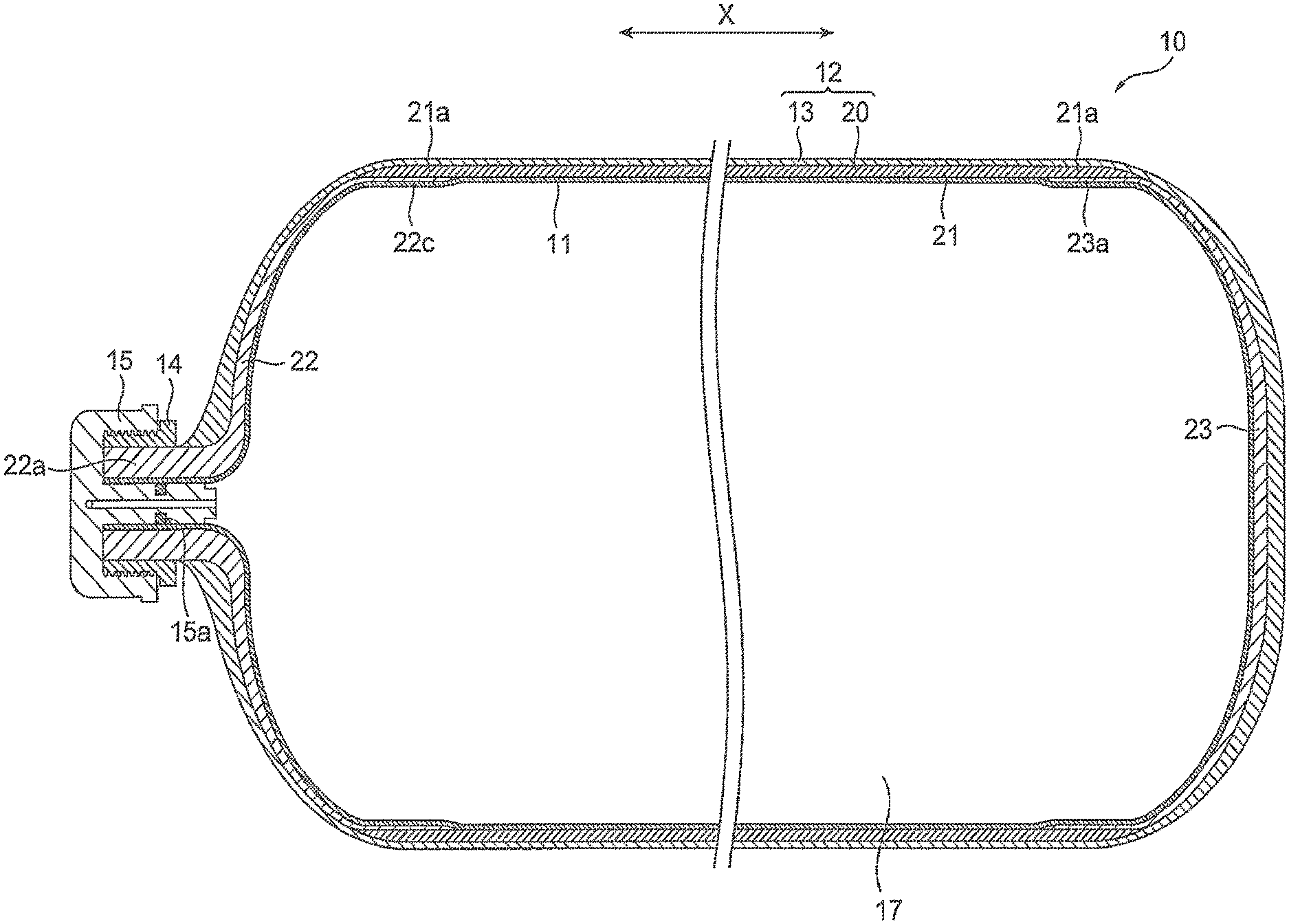

A method for manufacturing a high-pressure tank including a liner and a fiber-reinforced resin layer, the fiber-reinforced resin layer having a first reinforcing layer covering an outer surface of the liner and a second reinforcing layer covering an outer surface of the first reinforcing layer includes: forming a cylinder member made of a fiber-reinforced resin and having fibers oriented in a circumferential direction of the cylinder member; forming two dome members made of the fiber-reinforced resin; forming a reinforcing body that is the first reinforcing layer by joining the cylinder member and the dome members; and forming on an outer surface of the reinforcing body the second reinforcing layer made of the fiber-reinforced resin and having fibers oriented across the dome members.
First Claim
Other Claims data not available
