METHOD AND APPARATUS FOR OPERATING TRAVELING SPARK IGNITER AT HIGH PRESSURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 13, 2023
app pub date -
Jul 15, 2022
filing date -
Apr 19, 2005
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

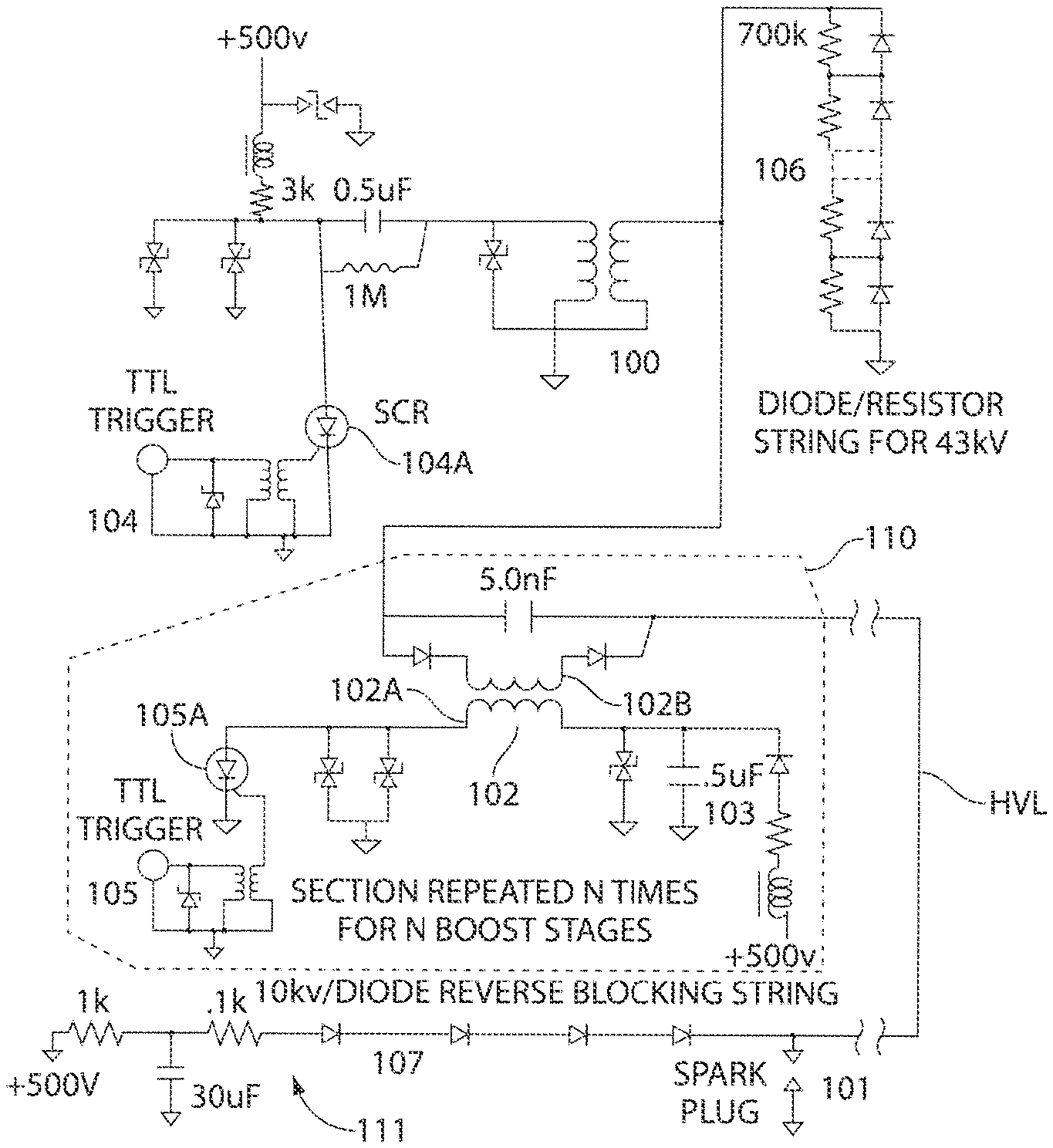

An ignition circuit and a method of operating an igniter (preferably a traveling spark igniter) in an internal combustion engine, including a high pressure engine. A high voltage is applied to electrodes of the igniter, sufficient to cause breakdown to occur between the electrodes, resulting in a high current electrical discharge in the igniter, over a surface of an isolator between the electrodes, and formation of a plasma kernel in a fuel-air mixture adjacent said surface. Following breakdown, a sequence of one or more lower voltage and lower current pulses is applied to said electrodes, with a low “simmer” current being sustained through the plasma between pulses, preventing total plasma recombination and allowing the plasma kernel to move toward a free end of the electrodes with each pulse.
First Claim
Other Claims data not available
